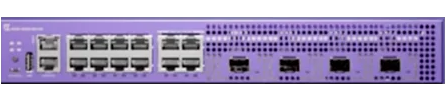

Extreme Networks 4220 12 port Multi-Gig 1G/2.5G/5G PoE Switch
Cloud-Managed Switching Made Easy

Extreme Networks 4220 12 port Multi-Gig 1G/2.5G/5G PoE Switch

Extreme Networks Products

4000 Series Switch

Extreme Networks 4220 12-Port Cloud-Managed Stackable Multi-Gig 1G/2.5G/5G PoE Switch (240W)
4x1G/2.5G/5GBaseT 90W PoE Ports, 8x10/100/1000BaseT 30W PoE Ports, 4x1G/10G SFP+ Ports. Includes Fans (Silent mode up to 35°C), 1 Fixed AC PSU, Rack-Mount Kit, Base Software

#4220-4MW-8P-4X
Our Price: Request a Quote

Get a Quote

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

The 4000 Series are ExtremeCloud IQ managed Layer 2 switches that simplify network operations while delivering all the power and flexibility of a traditional enterprise access switch. As a fully cloud-managed solution, the 4000 Series is ideal for enterprises looking for easy-to-manage, cost-effective Ethernet connectivity for their campus, branch or distributed sites.

4000 Series cloud management combines instant actions along with centralized visibility that simplify switch deployment, provisioning, and troubleshooting. Machine learning tools help quickly isolate issues, continuous cloud-delivery ensures latest management feature updates, and zero-touch provisioning allows rapid deployment across sites.

With 90W PoE, multi-gigabit access, stacking and policy services, the 4000 Series is a switch platform capable of addressing the evolving connectivity requirements of today's and tomorrow's wired networks.

The 4000 Series consists of 4120 and 4220 model families:

The 4120 family includes a 24-port and a 48-port model, with multi-gigabit (1/2.5Gb) and 90W PoE support across all access ports, and high-speed 4 x 10/25Gb uplink plus 2 x 100Gb uplink/stack ports, making it ideal as a wired concentrator for high-density Wi-Fi/IoT environments.
The 4220 family includes 8, 12, 24, and 48-port models with gigabit and multi-gigabit (1/2.5/5Gb) access ports, up to 90W PoE, and 4 x SFP+ uplink/stack ports and is a highly flexible enterprise Layer 2 wired access solution.

Highlights

Cloud-managed switching that simplifies deployment, operation, and management
Automate and streamline switch provisioning and day-to-day operations with cloud-based instant actions
Mobile app to easily onboard, provision, and troubleshoot your switches
Automated, maintenance-free feature and security updates delivered via the cloud
ExtremeCloud IQ and/or ExtremeCloud IQ Site Engine for powerful and secure public cloud or on-premises management

Benefits

Simplified deployment with zero-touch provisioning
Holistic visibility with a common management framework through ExtremeCloud IQ
Unified, automated and secure Fabric services across both Wired and Wireless networks
Multi-gigabit (1G/2.5G/5G) ports support high-bandwidth Wi-Fi 6/6E access points
Unifying Cloud Managed ZTNA for access point and switch security

Features and Capabilities

Cloud-managed via ExtremeCloud IQ
4 x 1G/2.5G/5GBaseT 802.3bt (90W) PoE ports
8 x 10/100/1000Base-T 802.3at (30W) PoE ports
4 x 1/10Gb SFP+ uplink/stacking ports
240W total PoE budget
Silent (fan-off) mode up to 35°C
40Gb high-speed stacking
Instant Port, Stack & Secure Port
Fabric Attach Services

Simplified Management with Instant Actions

Instant On-boarding - Zero-touch provisioning. Simply unpack, connect to network and provision. ExtremeCloud companion app makes on-boarding faster and simpler.

Instant Port - Eliminates manual configurations with automated device adds, moves and changes across 4000 series switch ports.

Instant Stack - Simplified cloud-based stack provisioning as entire switch stack can be set-up through a single push-button operation.

Instant Secure Port - Simplifies and enhances security capabilities by leveraging ExtremeCloud Universal ZTNA (UZTNA) for authentication and policy enforcement along with all the Instant Port features.

Holistic visibility - Complete view of network, switch and wired clients from anywhere.

Extreme Universal Wired and Wireless

Designed to Work Together for Greater Outcomes

Extreme's Universal wired and wireless platforms designed to deliver a better network experience

Holistic visibility with a common management framework through ExtremeCloud IQ.
Unified, automated and secure Fabric services across both Wired and Wireless networks.
Multi-gigabit (1G/2.5G/5G) along with high bandwidth uplinks for increased 6 GHz Wi-Fi bandwidth needs.
Power over Ethernet (PoE) switch capabilities up to 90W for 6 GHz Wi-Fi access point (AP) power requirements.
Unifying Cloud Managed ZTNA for access point and switch security.

Features:

360° Views

Cloud-based 360° network topology and switch views enable drill down to the 4000 Series switch, port and connected clients for quick status, including historical trends. Aggregated 4000 Switch Health scores further offer a way to easily monitor an individual 4000 Series switch or all 4000 Series switches in the network, to quickly isolate and troubleshoot issues. Furthermore, unified views of the entire Extreme wired/wireless infrastructure are also available within ExtremeCloud IQ.

4000 Series Cloud Management

The 4000 Series has been designed for easy-to-use cloud management that simplifies deployment, provisioning and troubleshooting. 4000 Series switches can be managed either by ExtremeCloud IQ or ExtremeCloud IQ Site Engine for comprehensive, unified management with a consolidated view of users, devices, and applications across wired and wireless networks. As a wholly cloud-managed solution, 4000 Series switches avoid the need for complex on-switch provisioning via direct console interface.

Continuous Cloud Feature Delivery

The 4000 Series benefits from continuous feature delivery with each new ExtremeCloud IQ update. It's an automated way to get maintenance-free cloud-feature and security updates delivered to every 4000 Series switch in the network. And if there is a need to update 4000 Series firmware, this can also be centrally done from the cloud.

Fabric Attach Services

Fabric Attach services provide zero-touch edge provisioning and allow the 4000 Series to take advantage of the virtualized services and inherent security capabilities of the Extreme Fabric infrastructure. ExtremeCloud IQ provides a native cloud management option for the 4000 Series with a rich set of automated onboarding, provisioning and visibility features.

ExtremeCloud IQ Site Engine for the 4000 Series

4000 Series switches can also be managed from ExtremeCloud IQ Site Engine as an on-premises cloud management option. ExtremeCloud IQ Site Engine supports complete end-to-end management and monitoring of wired, wireless and 3rd-party devices, with in-depth visibility and control of users, devices and applications. 4000 Series management features available using ExtremeCloud IQ Site Engine include zero-touch provisioning, device configuration, alarms and events, scripts and workflows, as well as inventory management including backup and restore functions.

Flexible PoE

The 4220-4MW-8P-4X offers 4 multi-gigabit ports with IEEE 802.3bt 90W PoE and 8 gigabit ports with IEEE 802.3at 30W PoE, delivering a total PoE budget of 240W. This enables the connection of high-power devices such as Wi-Fi 6/6E access points, IP cameras, and other converged devices.

High-Performance Stacking

4220 models support 40Gb stacking via two built-in SFP+ uplink ports. Up to eight systems can be stacked using qualified 10Gb direct attach-cables and optical transceivers. Note: Cross-stacking between 4120 and 4220 models is not supported. Stacking is not supported when running Fabric Engine.

Instant Onboarding

4000 Series onboarding to the cloud is a hands-off operation using zero-touch provisioning. Simply unpack the 4000 Series switch, connect it to the network, and it automatically finds its connection to the cloud, ready to be provisioned. The ExtremeCloud Companion mobile app makes onboarding even easier with on-site cloud set-up and switch troubleshooting capabilities.

Instant Port

Instant Port automates adds, moves or changes across 4000 Series switch ports, eliminating the need for manual port configuration. The 4000 Series automatically detects the connected device type and applies the correct port parameters.

Instant Secure Port

Instant Secure Port leverages ExtremeCloud Universal ZTNA (UZTNA) for authentication and zero-trust policy enforcement across 4000 Series switch ports. (NOTE: ExtremeCloud UZTNA requires a separate license.)

Instant Stack

Instant Stack simplifies cloud-based stack provisioning, enabling the entire switch stack to be set-up through a single push-button operation.

Multi-Gigabit Support

The 4220-4MW-8P-4X supports 4 ports operating at 1/2.5/5Gb, enabling the connection of APs or other powered devices requiring more than 1 Gigabit of bandwidth.

Quiet (Fan-Off) Operation

Quiet (fan-off) mode operation at temperatures up to 35°C is supported, making this model ideal for classrooms, hospitality suites, retail sites, or other noise-sensitive environments.

Specifications:

Switch Model	Interfaces
4220-12T-4X	12 x 10/100/1000Base-T ports 4 x 1/10Gb SFP+ uplink/stacking ports (unpopulated) 1 x 10/100/1000BASE-T out-of-band management port 1 x Serial console port (RJ-45) 1 x USB A port 1 x USB Micro-B console port
4220-12P-4X	12 x 10/100/1000Base-T 802.3at (30W) PoE ports 4 x 1/10Gb SFP+ uplink/stacking ports (unpopulated) 1 x 10/100/1000BASE-T out-of-band management port 1 x Serial console port (RJ-45) 1 x USB A port 1 x USB Micro-B console port
4220-24T-4X	24 x 10/100/1000Base-T ports 4 x 1/10Gb SFP+ uplink/stacking ports (unpopulated) 1 x 10/100/1000BASE-T out-of-band management port 1 x Serial console port (RJ-45) 1 x USB A port 1 x USB Micro-B console port
4220-24P-4X	24 x 10/100/1000Base-T 802.3at (30W) PoE ports 4 x 1/10Gb uplink/stacking ports (unpopulated) 1 x 10/100/1000BASE-T out-of-band management port 1 x Serial console port (RJ-45) 1 x USB A port 1 x USB Micro-B console port
4220-48T-4X	48 x 10/100/1000Base-T ports 4 x 1/10Gb SFP+ uplink/stacking ports (unpopulated) 1 x 10/100/1000BASE-T out-of-band management port 1 x Serial console port (RJ-45) 1 x USB A port 1 x USB Micro-B console port
4220-48P-4X	48 x 10/100/1000Base-T 802.3at (30W) PoE ports 4 x 1/10Gb uplink/stacking ports (unpopulated) 1 x 10/100/1000BASE-T out-of-band management port 1 x Serial console port (RJ-45) 1 x USB A port 1 x USB Micro-B console port
4220-4MW-8P-4X	4 x 1G/2.5G/5GBaseT 802.3bt (90W) PoE ports 8 x 10/100/1000Base-T 802.3at (30W) PoE ports 4 x 1/10Gb SFP+ uplink/stacking ports (unpopulated) 1 x 10/100/1000BASE-T out-of-band management port 1 x Serial console port (RJ-45) 1 x USB A port 1 x USB Micro-B console port
4220-4MW-20P-4X	4 x 1G/2.5G/5GBaseT 802.3bt (90W) PoE ports 20 x 10/100/1000Base-T 802.3at (30W) PoE ports 4 x 1/10Gb SFP+ uplink/stacking ports (unpopulated) 1 x 10/100/1000BASE-T out-of-band management port 1 x Serial console port (RJ-45) 1 x USB A port 1 x USB Micro-B console port
4220-8MW-40P-4X	8 x 1G/2.5G/5GBaseT 802.3bt (90W) PoE ports 40 x 10/100/1000Base-T 802.3at (30W) PoE ports 4 x 1/10Gb SFP+ uplink/stacking ports (unpopulated) 1 x 10/100/1000BASE-T out-of-band management port 1 x Serial console port (RJ-45) 1 x USB A port 1 x USB Micro-B console port
4220-8X	8 x 1/10Gb SFP+ ports (unpopulated) 1 x Serial console port (RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 1 x USB A port 1 x USB Micro-B console port

	4220-12T-4X	4220-12P-4X	4220-24T-4X	4220-24P-4X	4220-48T-4X	4220-48P-4X	4220-4MW-8P-4X	4220-4MW-20P-4X	4220-8MW-40P-4X	4220-8X
Performance and Scaling
Max Active 10/100/1Gb ports	12	12	24	24	48	48	8	20	40	0
Max Active 1Gb/2.5Gb/5Gb ports	0	0	0	0	0	0	4	4	8	0
Max Active 1Gb/10Gb SFP+ ports	4	4	4	4	4	4	4	4	4	8
Aggregated Switch Bandwidth	104 Gbps	104 Gbps	128 Gbps	128 Gbps	176 Gbps	176 Gbps	136 Gbps	160 Gbps	240 Gbps	160 Gbps
Frame Forwarding Rate	77.4 Mpps	77.4 Mpps	95.2 Mpps	95.2 Mpps	130.9 Mpps	130.9 Mpps	101.2 Mpps	119.0 Mpps	178.6 Mpps	119.0 Mpps
Physical Specifications
Dimensions	12.0in W / 1.7in H / 10.3in D 305mm / 44mm / 261mm		17.36in W / 1.7in H / 10.0in D 441mm / 44mm / 254mm	17.4in W / 1.7in H / 13.0in D 441mm / 44mm / 330mm			12.0in W / 1.7in H / 10.3in D 305mm / 44mm / 261mm	17.4in W / 1.7in H / 13.0in D 441mm / 44mm / 330mm		12.0in W / 1.7in H / 10.3in D 305mm / 44mm / 261mm
Net Weight	5.5 lb / 2.52 kg	6.8 lb / 3.11 kg	7.0 lb / 3.16 kg	9.6 lb / 4.37 kg	10.0 lb / 4.53 kg	11.2 lb / 5.09 kg	7.1 lb / 3.23 kg	10.6 lb / 4.83 kg	11.9 lb / 5.41 kg	5.2 lb / 2.37 kg
Power Supply
Internal Fixed PSU Max Power	65W	370W	65W	370W	150W	550W	370W	550W	950W	65W
Secondary PSU	–	–	–	–	–	–	–	RPS-550W	RPS-950W	–
Max PoE Power Budget
PoE Budget	–	124W	–	195W	–	370W	240W	370W	740W	–
Power Consumption
Minimum Power Consumption	12W	17W	15W	20W	28W	30W	19W	22W	35W	11W
Minimum Heat Dissipation	41 BTU/hr	58 BTU/hr	50 BTU/hr	68 BTU/hr	96 BTU/hr	103 BTU/hr	64 BTU/hr	73 BTU/hr	118 BTU/hr	38 BTU/hr
Maximum Power Consumption¹	26W	166W	31W	252W	52W	470W	304W	458W	899W	30W
Maximum Heat Dissipation²	89 BTU/hr	142 BTU/hr	104 BTU/hr	195 BTU/hr	177 BTU/hr	340 BTU/hr	219 BTU/hr	300 BTU/hr	542 BTU/hr	103 BTU/hr
Operating Conditions
Operating Temperature	0°C to 50°C (32°F to 122°F)
Operating Humidity	10% to 95% relative humidity, non-condensing
Operating Altitude	0 to 3,000 meters (9,850 feet)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
4220 Software Scaling (Switch Engine)
MAC Table	32,000
IPv4 ARP Table	4,000
IPv4 Route Table	1,000
IPv6 Route Table	500
VLANs	4,094
ACLs (Ingress/Egress)	2,048 / 512
Policy Profiles	63
Layer 2 Switching
VLANs	Port-based, tagging, MAC-based, private, VLAN translation
Spanning Tree	IEEE 802.1D STP, 802.1w RSTP, 802.1s MSTP, Per VLAN Spanning Tree (PVST+)
Other L2	LLDP IEEE 802.1ab (incl. LLDP-MED), IGMP v1/v2/v3 snooping, LAG IEEE 802.3ad, Jumbo frames, sFlow
Safety and Regulatory
Safety	UL 60950-1 / UL/CuL 62368-1 Listed EN 62368-1 (European) CB Report & Certificate IEC 62368-1 AS/NZS 60950-1 (Australia/New Zealand)
EMC	FCC CFR 47 part 15 Class A (USA) EN 55032 Class A / EN 55035 (European) CISPR 32 Class A (International) ACMA RCM (Australia) VCCI Class A (Japan) KCC Mark (Korea) / BSMI (Taiwan)
Environmental Compliance	EU RoHS - 2011/65/EU and amendments EU WEEE - 2012/19/EU China RoHS - GB/T 26572-2011

¹ Includes maximum PoE load (W) through the switch
² Does not include PoE load heat dissipated through external electronic load

Documentation:

Download the Extreme Networks 4000 Series Switches Datasheet (.PDF)

Download the Extreme Networks 4000 Series Universal Switches At-A-Glance Datasheet (.PDF)

Pricing Notes:

All Prices are Inclusive of GST
Pricing and product availability subject to change without notice.
