Extreme Networks 4220 8 port Switch
Cloud-Managed Switching Made Easy


Extreme Networks 4220 8 port Switch

Extreme Networks Products
4000 Series Switch

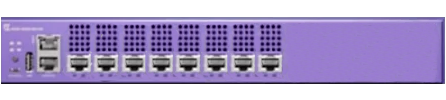

Extreme Networks 4220 8-Port Cloud-Managed Stackable Switch
8x1G/10G SFP+ Ports. Includes Fans, 1 Fixed AC PSU, Rack-Mount Kit, Base Software
#4220-8X
Our Price: Request a Quote
Get a Quote

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

The 4000 Series are ExtremeCloud IQ managed Layer 2 switches that simplify network operations while delivering all the power and flexibility of a traditional enterprise access switch. As a fully cloud-managed solution, the 4000 Series is ideal for enterprises looking for easy-to-manage, cost-effective Ethernet connectivity for their campus, branch or distributed sites.

4000 Series cloud management combines instant actions along with centralized visibility that simplify switch deployment, provisioning, and troubleshooting. Machine learning tools help quickly isolate issues, continuous cloud-delivery ensures latest management feature updates, and zero-touch provisioning allows rapid deployment across sites.

With 90W PoE, multi-gigabit access, stacking and policy services, the 4000 Series is a switch platform capable of addressing the evolving connectivity requirements of today's and tomorrow's wired networks.

The 4000 Series consists of 4120 and 4220 model families:

  • The 4120 family includes a 24-port and a 48-port model, with multi-gigabit (1/2.5Gb) and 90W PoE support across all access ports, and high-speed 4 x 10/25Gb uplink plus 2 x 100Gb uplink/stack ports, making it ideal as a wired concentrator for high-density Wi-Fi/IoT environments.
  • The 4220 family includes 8, 12, 24, and 48-port models with gigabit and multi-gigabit (1/2.5/5Gb) access ports, up to 90W PoE, and 4 x SFP+ uplink/stack ports and is a highly flexible enterprise Layer 2 wired access solution.

Highlights

  • Cloud-managed switching that simplifies deployment, operation, and management
  • Automate and streamline switch provisioning and day-to-day operations with cloud-based instant actions
  • Mobile app to easily onboard, provision, and troubleshoot your switches
  • Automated, maintenance-free feature and security updates delivered via the cloud
  • ExtremeCloud IQ and/or ExtremeCloud IQ Site Engine for powerful and secure public cloud or on-premises management

Benefits

  • Simplified deployment with zero-touch provisioning
  • Holistic visibility with a common management framework through ExtremeCloud IQ
  • Unified, automated and secure Fabric services across both Wired and Wireless networks
  • Multi-gigabit (1G/2.5G/5G) along with high bandwidth uplinks for increased 6 GHz Wi-Fi bandwidth needs
  • Unifying Cloud Managed ZTNA for access point and switch security

Features and Capabilities

  • Cloud-managed via ExtremeCloud IQ
  • 8 x 1/10Gb SFP+ ports
  • 40Gb high-speed stacking (4220)
  • Instant Port, Stack & Secure Port
  • Fabric Attach Services
  • Zero-touch provisioning
  • ExtremeCloud Universal ZTNA support
  • Quiet (fan-off) operation on select models

Features:


360 Views

360° Views

Cloud-based 360° network topology and switch views enable drill down to the 4000 Series switch, port and connected clients for quick status, including historical trends. Aggregated 4000 Switch Health scores further offer a way to easily monitor an individual 4000 Series switch or all 4000 Series switches in the network, to quickly isolate and troubleshoot issues. Furthermore, unified views of the entire Extreme wired/wireless infrastructure are also available within ExtremeCloud IQ.


Cloud Management

4000 Series Cloud Management

The 4000 Series has been designed for easy-to-use cloud management that simplifies deployment, provisioning and troubleshooting. 4000 Series switches can be managed either by ExtremeCloud IQ or ExtremeCloud IQ Site Engine for comprehensive, unified management with a consolidated view of users, devices, and applications across wired and wireless networks. As a wholly cloud-managed solution, 4000 Series switches avoid the need for complex on-switch provisioning via direct console interface.


Fabric Attach

Fabric Attach Services

Fabric Attach services provide zero-touch edge provisioning and allow the 4000 Series to take advantage of the virtualized services and inherent security capabilities of the Extreme Fabric infrastructure. ExtremeCloud IQ provides a native cloud management option for the 4000 Series with a rich set of automated onboarding, provisioning and visibility features.


Instant Actions

Instant Actions

Instant Onboarding - Simply unpack the 4000 Series switch, connect it to the network, and it automatically finds its connection to the cloud, ready to be provisioned. The ExtremeCloud Companion mobile app makes onboarding even easier.

Instant Port - Automates adds, moves or changes across 4000 Series switch ports, eliminating the need for manual port configuration.

Instant Secure Port - Leverages ExtremeCloud Universal ZTNA (UZTNA) for authentication and zero-trust policy enforcement across 4000 Series switch ports. (NOTE: ExtremeCloud UZTNA requires a separate license.)

Instant Stack - Simplifies cloud-based stack provisioning, enabling the entire switch stack to be set-up through a single push-button operation.


Features and Capabilities

  • High-Performance Stacking - 4220 models support 40Gb stacking via two built-in SFP+ uplink ports. Up to eight systems can be stacked using qualified 10Gb direct attach-cables and optical transceivers. Note: Cross-stacking between 4120 and 4220 models is not supported.
  • Multi-Gigabit Support - The 4220 includes multi-gigabit PoE models with ports that operate at 1/2.5/5Gb. The 4220-4MW-8P-4X and 4220-4MW-20P-4X models support 4 multi-gigabit ports and the 4220-8MW-40P-4X supports 8 multi-gigabit ports.
  • Quiet (Fan-Off) Operation - Supported on 4220 12-port PoE, non-PoE, and multi-gigabit models at temperatures up to 35°C. Ideal for classrooms, hospitality suites, retail sites, or other noise-sensitive environments.
  • Flexible PoE - Standards-based IEEE 802.3at 30W on 1 gigabit access ports and IEEE 802.3bt 30/60/90W on multi-gigabit ports.
  • Continuous Cloud Feature Delivery - Automated, maintenance-free cloud-feature and security updates delivered to every 4000 Series switch in the network.
  • ExtremeCloud IQ Site Engine support for complete end-to-end management and monitoring of wired, wireless and 3rd-party devices.

Specifications:


Switch Model Interfaces
4220-8X
  • 8 x 1/10Gb SFP+ ports (unpopulated)
  • 1 x Serial console port (RJ-45)
  • 1 x 10/100/1000BASE-T out-of-band management port
  • 1 x USB A port
  • 1 x USB Micro-B console port
4220-12T-4X
  • 12 x 10/100/1000Base-T ports
  • 4 x 1/10Gb SFP+ uplink/stacking ports (unpopulated)
  • 1 x 10/100/1000BASE-T out-of-band management port
  • 1 x Serial console port (RJ-45)
  • 1 x USB A port
  • 1 x USB Micro-B console port
4220-12P-4X
  • 12 x 10/100/1000Base-T 802.3at (30W) PoE ports
  • 4 x 1/10Gb SFP+ uplink/stacking ports (unpopulated)
  • 1 x 10/100/1000BASE-T out-of-band management port
  • 1 x Serial console port (RJ-45)
  • 1 x USB A port
  • 1 x USB Micro-B console port
4220-24T-4X
  • 24 x 10/100/1000Base-T ports
  • 4 x 1/10Gb SFP+ uplink/stacking ports (unpopulated)
  • 1 x 10/100/1000BASE-T out-of-band management port
  • 1 x Serial console port (RJ-45)
  • 1 x USB A port
  • 1 x USB Micro-B console port
4220-24P-4X
  • 24 x 10/100/1000Base-T 802.3at (30W) PoE ports
  • 4 x 1/10Gb uplink/stacking ports (unpopulated)
  • 1 x 10/100/1000BASE-T out-of-band management port
  • 1 x Serial console port (RJ-45)
  • 1 x USB A port
  • 1 x USB Micro-B console port
4220-48T-4X
  • 48 x 10/100/1000Base-T ports
  • 4 x 1/10Gb SFP+ uplink/stacking ports (unpopulated)
  • 1 x 10/100/1000BASE-T out-of-band management port
  • 1 x Serial console port (RJ-45)
  • 1 x USB A port
  • 1 x USB Micro-B console port
4220-48P-4X
  • 48 x 10/100/1000Base-T 802.3at (30W) PoE ports
  • 4 x 1/10Gb uplink/stacking ports (unpopulated)
  • 1 x 10/100/1000BASE-T out-of-band management port
  • 1 x Serial console port (RJ-45)
  • 1 x USB A port
  • 1 x USB Micro-B console port
4220-4MW-8P-4X
  • 4 x 1G/2.5G/5GBaseT 802.3bt (90W) PoE ports
  • 8 x 10/100/1000Base-T 802.3at (30W) PoE ports
  • 4 x 1/10Gb SFP+ uplink/stacking ports (unpopulated)
  • 1 x 10/100/1000BASE-T out-of-band management port
  • 1 x Serial console port (RJ-45)
  • 1 x USB A port
  • 1 x USB Micro-B console port
4220-4MW-20P-4X
  • 4 x 1G/2.5G/5GBaseT 802.3bt (90W) PoE ports
  • 20 x 10/100/1000Base-T 802.3at (30W) PoE ports
  • 4 x 1/10Gb SFP+ uplink/stacking ports (unpopulated)
  • 1 x 10/100/1000BASE-T out-of-band management port
  • 1 x Serial console port (RJ-45)
  • 1 x USB A port
  • 1 x USB Micro-B console port
4220-8MW-40P-4X
  • 8 x 1G/2.5G/5GBaseT 802.3bt (90W) PoE ports
  • 40 x 10/100/1000Base-T 802.3at (30W) PoE ports
  • 4 x 1/10Gb SFP+ uplink/stacking ports (unpopulated)
  • 1 x 10/100/1000BASE-T out-of-band management port
  • 1 x Serial console port (RJ-45)
  • 1 x USB A port
  • 1 x USB Micro-B console port
  4220-8X 4220-12T-4X 4220-12P-4X 4220-24T-4X 4220-24P-4X 4220-48T-4X 4220-48P-4X 4220-4MW-8P-4X 4220-4MW-20P-4X 4220-8MW-40P-4X
Performance and Scaling
Max Active 10/100/1Gb ports 012122424484882040
Max Active 1Gb/2.5Gb/5Gb ports 0000000448
Max Active 1Gb/10Gb SFP+ ports 8444444444
Aggregated Switch Bandwidth 160 Gbps104 Gbps104 Gbps128 Gbps128 Gbps176 Gbps176 Gbps136 Gbps160 Gbps240 Gbps
Frame Forwarding Rate 119.0 Mpps77.4 Mpps77.4 Mpps95.2 Mpps95.2 Mpps130.9 Mpps130.9 Mpps101.2 Mpps119.0 Mpps178.6 Mpps
Physical Specifications
Dimensions 12.0in W / 1.7in H / 10.3in D 12.0in W / 1.7in H / 10.3in D 17.36in W / 1.7in H / 10.0in D 17.4in W / 1.7in H / 13.0in D 12.0in W / 1.7in H / 10.3in D 17.4in W / 1.7in H / 13.0in D
Net Weight 5.2 lb / 2.37 kg 5.5 lb / 2.52 kg 6.8 lb / 3.11 kg 7.0 lb / 3.16 kg 9.6 lb / 4.37 kg 10.0 lb / 4.53 kg 11.2 lb / 5.09 kg 7.1 lb / 3.23 kg 10.6 lb / 4.83 kg 11.9 lb / 5.41 kg
Power Supply
Internal Fixed PSU Max Power 65W65W370W65W370W150W550W370W550W950W
Secondary PSU ––––––––RPS-550WRPS-950W
Max PoE Power Budget
PoE Budget ––124W–195W–370W240W370W740W
Power Consumption
Minimum Power Consumption 11W12W17W15W20W28W30W19W22W35W
Maximum Power Consumption1 30W26W166W31W252W52W470W304W458W899W
Maximum Heat Dissipation2 103 BTU/hr89 BTU/hr142 BTU/hr104 BTU/hr195 BTU/hr177 BTU/hr340 BTU/hr219 BTU/hr300 BTU/hr542 BTU/hr
Operating Conditions
Operating Temperature 0°C to 50°C (32°F to 122°F)
Operating Humidity 10% to 95% relative humidity, non-condensing
Operating Altitude 0 to 3,000 meters (9,850 feet)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
4220 Software Scaling (Switch Engine)
MAC Table 32,000
IPv4 ARP Table 4,000
IPv4 Route Table 1,000
IPv6 Route Table 500
VLANs 4,094
ACLs (Ingress/Egress) 2,048 / 512
Policy Profiles 63
Safety and Regulatory
Safety
  • UL 60950-1 / UL/CuL 62368-1 Listed
  • EN 62368-1 (European)
  • CB Report & Certificate IEC 62368-1
  • AS/NZS 60950-1 (Australia/New Zealand)
EMC
  • FCC CFR 47 part 15 Class A (USA)
  • EN 55032 Class A / EN 55035 (European)
  • CISPR 32 Class A (International)
  • ACMA RCM (Australia)
  • VCCI Class A (Japan)
  • KCC Mark (Korea) / BSMI (Taiwan)
Environmental Compliance
  • EU RoHS - 2011/65/EU and amendments
  • EU WEEE - 2012/19/EU
  • China RoHS - GB/T 26572-2011

1 Includes maximum PoE load (W) through the switch
2 Does not include PoE load heat dissipated through external electronic load

Documentation:

Download the Extreme Networks 4000 Series Switches Datasheet (.PDF)

Download the Extreme Networks 4000 Series Universal Switches At-A-Glance Datasheet (.PDF)
