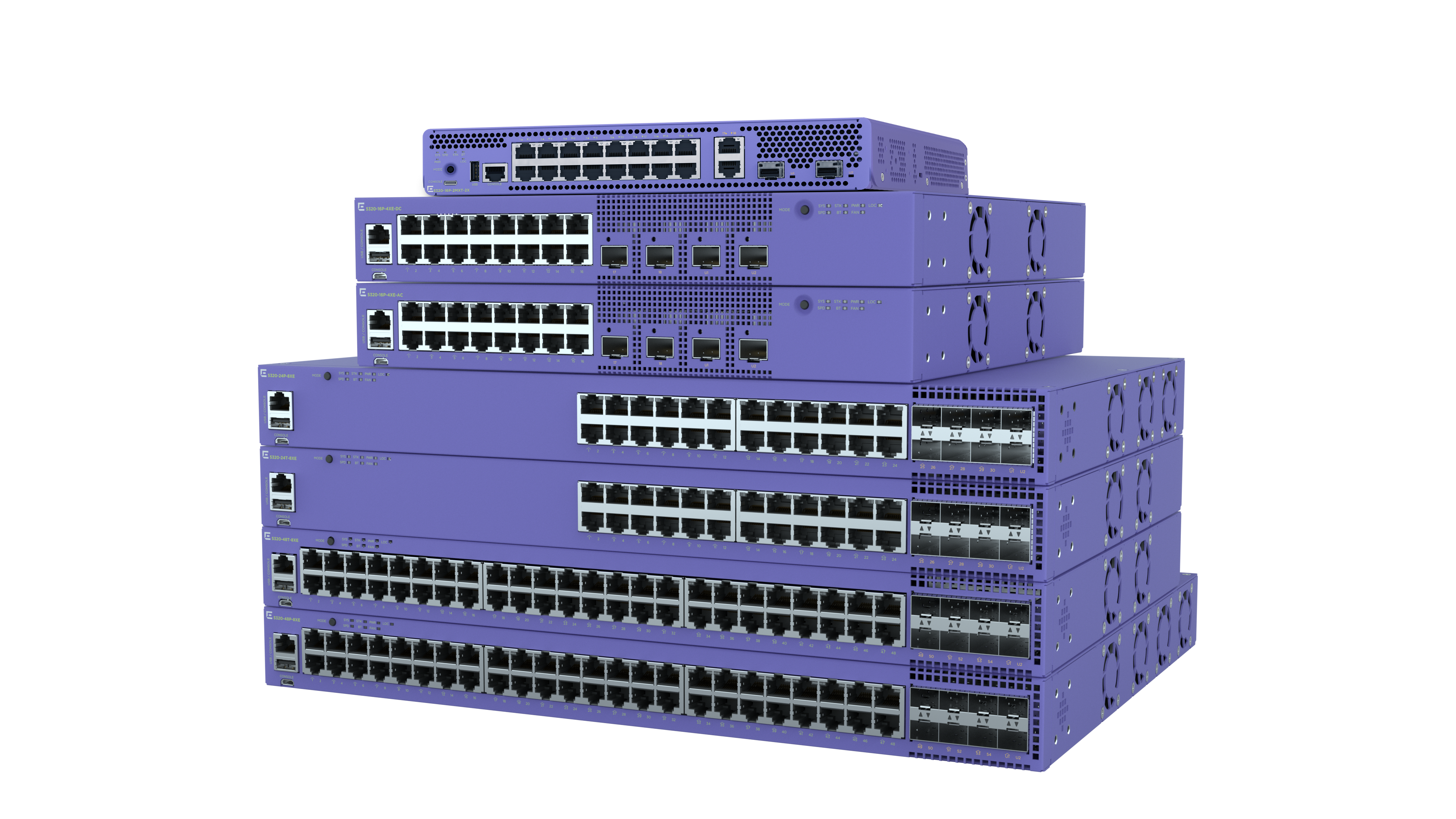

Extreme Networks 5320-16P-2MXT-2X
Compact Fanless 16-Port PoE Universal Edge Switch

Features:

Silent Operation

The 5320-16P-2MXT-2X operates completely silently at temperatures up to 45°C (113°F) with no moving parts. This makes it uniquely suited to noise-sensitive deployments such as classrooms, boardrooms, hospitality suites, and retail environments where traditional fan-cooled switches would be disruptive. Wall mount, DIN rail, and under-table mounting options further extend its deployment flexibility beyond the rack.

Universal Hardware — Dual Persona

The 5320 comes with dual-persona capability, allowing you to choose your Operating System (OS). Either Switch Engine (EXOS) or Fabric Engine (VOSS) can be selected at switch start-up or changed at a later stage. When selected, the switch assumes the features and capabilities of that OS. OS selection can also be automated with Extreme Platform ONE or ExtremeCloud IQ so that the desired OS is automatically loaded at switch start-up, facilitating remote enablement.

Network Fabric

The 5320 series natively supports Extreme Fabric for network virtualization, automation, and security. Extreme Fabric automates discovery and onboarding of network and user devices, provides sub-second convergence to reduce unplanned downtime, and delivers automated microsegmentation and stealth topology to enhance network security across campus, data center, and branch deployments. Fabric Engine support is included with all 5320 switch models.

Extreme Platform ONE

Extreme Platform ONE is an enterprise connectivity platform that integrates networking and security with AI into one powerful and radically simplified experience and licensing model. It supports NetOps, SecOps, and business teams with built-in automation and enables organizations to regain control, unlock innovation, and boost productivity. Features include zero touch onboarding, Instant Port, Instant Secure Port, and Instant Stack for automated provisioning at scale.

Security and MACsec

Extreme Universal hardware enables extension and enforcement of Fabric and Extreme Platform ONE Security policies. MACsec encryption is supported on both uplink SFP+ ports. Instant Secure Port leverages Extreme Platform ONE Security for zero trust policy enforcement across switch ports, delivering a consistent and frictionless security experience for any user or device. (MACsec requires a separate license.)

Power over Ethernet

All 16 access ports support 30W PoE conforming with IEEE 802.3at, with a total PoE budget of 180W. PoE eliminates the need for additional electrical cabling for connected devices. The 5320-16P-2MXT-2X also supports perpetual and fast PoE for more efficient and reliable powered edge device operation.

Specifications:

5320-16P-2MXT-2X External Interfaces

Port Type	Detail
16 x Access Ports	10/100/1000BASE-T, 802.3at 30W PoE, Full/Half-Duplex autosensing
2 x Multi-Gig Uplinks	1/2.5/5/10GBase-T copper uplink ports
2 x SFP+ Uplinks	1/10Gb SFP+ uplink ports, MACsec-capable (includes stacking capability)
Console	1 x Serial console port (RJ-45); 1 x USB-C console port
USB	1 x USB-A port for management or external USB flash
Cooling	Fanless
Power	1 x internal fixed AC PSU

Performance and Scaling

Parameter	5320-16P-2MXT-2X
Max Active 10/100/1000Mb ports	16
Max Active 1G/2.5G/5G/10Gb ports	2
Max Active 1G/10Gb SFP/SFP+ ports	2
Max Active 10Gb Stacking ports	2
Aggregated Switch Bandwidth	112 Gbps
Max Frame Forwarding Rate	83.3 Mpps
Max PoE Budget	180W
Minimum Power Consumption	12.5W
Maximum Power Consumption (incl. max PoE)	218W
Minimum Heat Dissipation	43 BTU/hr
Maximum Heat Dissipation (excl. PoE load)	75 BTU/hr
Acoustic Noise	N/A — Fanless model

Software Scaling (Fabric Engine)

Item	5320-16P-2MXT-2X
MAC Table (Fabric disabled)	32,000
MAC Table (Fabric enabled)	16,000
IPv4 ARP Table	4,000
IPv6 Neighbor Table	4,000
VLANs	4,059
IPv4 Route Table	1,000
IPv6 Route Table	500
IP Route Interfaces	248
Multicast (S,G,V)	4,000
VRF	8
ACL, Ingress	512
ACL, Egress	190
Max Fabric Nodes	300
L2VSN	128
L3VSN	8

Physical

Parameter	Value
Weight	3.3 kg (7.3 lb.)
Height	43.2 mm (1.7 in.)
Width	269.2 mm (10.6 in.)
Depth	236.2 mm (9.3 in.)
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	5% to 95% relative humidity, non-condensing
Altitude	0 to 3,000 meters (9,850 feet)

Regulatory & Safety

• UL 60950-1 / UL/CuL 62368-1 Listed
• EN 62368-1 / CB IEC 62368-1
• AS/NZS 60950-1 (Australia/New Zealand)
• FCC CFR 47 Part 15 Class A / ICES-003 Class A
• EN 55032 Class A / CISPR 32 Class A / AS/NZS CISPR32
• ACMA RCM (Australia Emissions)
• CE: 2014/30/EU EMC Directive; 2014/35/EU Low Voltage Directive

Ordering Notes

Each 5320 Series switch is supplied with a Base software license and integrated power supply. Optical transceivers, console cables, power cords, Premier licenses, and MACsec licenses must be ordered separately. The 5320-16P-2MXT-2X does not include a Rack Mount Kit — the mounting kit must be ordered separately.

Part Number	Description
5320-16P-2MXT-2X	5320 Universal Switch, 16 x 30W PoE ports, 2 x Multi-Gig copper uplinks, 2 x 10Gb SFP+ uplinks, fanless, AC PSU
5320-16P-2MXT-2X-TAA	As above, TAA Compliant
XN-WMKIT-002	Wall Mount kit for 5320-16P-2MXT-2X
XN-2P-RMKIT-012	2-post Rack Mount kit for 5320-16P-2MXT-2X
XN-DIN-MT-002	DIN Rail Mount kit for 5320-16P-2MXT-2X
XN-UTMKIT-001	Under-table mount kit for 5320-16P-2MXT-2X
5000-PRMR-LIC-P	Perpetual Premier License for 5000 Series
5000-MACSEC-LIC-P	Perpetual MACsec License for 5000 Series

Documentation:

Download the Extreme Networks 5320 Series Datasheet (.PDF)
