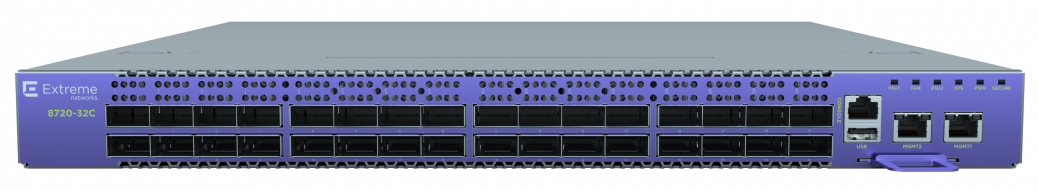

Extreme Networks 7720-32C
Universal Aggregation/Core Switch Platform
32 x 40Gb/100Gb QSFP28 fiber ports, includes two empty power supply slots, six empty fan slots, one 4-post rack mount kit. Fan modules and power supply modules must be ordered separately.
Our Price: Request a Quote
32 x 40Gb/100Gb QSFP28 fiber ports, includes two AC front-to-back airflow power supplies, six front-to-back airflow fans, one 4-post rack mount kit.
Our Price: Request a Quote
32 x 40Gb/100Gb QSFP28 fiber ports, includes two AC back-to-front airflow power supplies, six back-to-front airflow fans, one 4-post rack mount kit.
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
The Extreme 7720 are purpose-built switches designed for high-performance aggregation and core applications. As a universal hardware platform, the 7720 provides end-to-end secure network segmentation, in addition to advanced policy capabilities, with a user-selectable choice of Extreme's flagship switch operating systems. This makes the 7720 a uniquely flexible platform that can be deployed in a variety of aggregation and core environments.
The Extreme 7720 network hardware platform enables organizations to design networks that accommodate a variety of applications and east-west traffic patterns. With its high-density scale-out architecture, leading power efficiency, and airflow options, the 7720 platform delivers a cost-effective solution that optimizes power, cooling, and equipment room space, wherever your network operating center might be.
Highlights
- High-performance, fixed-form switches for leaf, spine, aggregation, or core applications
- Universal dual-persona hardware allows user choice of switch operating systems
- ExtremeCloud IQ and ExtremeCloud IQ - Site Engine for powerful, secure and easy to use cloud-based network management
- Fabric Connect for automated network operations, simplified network provisioning and enhanced security
Key Hardware Features
- 32 x 40Gb/100Gb fiber ports in a fixed 1U form factor
- 124 x 10G/25G ports via breakout cables
- AC and DC power options
- Back-to-front and front-to-back airflow options
- Up to 8-unit stacking
- Integrated Application Hosting enables 3rd-party applications without impacting switch performance
- Non-blocking, wire-speed design
Features:
Universal Hardware Platform
The 7720 Series comes with a dual-persona capability allowing user choice of the switch operating system (OS). Either the Switch Engine (EXOS) or Fabric Engine (VOSS) persona can be enabled on 7720 hardware models. The desired persona can be selected at start-up or changed at a later stage. Once selected, the 7720 assumes the features/capabilities of the selected OS.
7720 persona activation can be done manually at boot-up, including via the system CLI. Or, it can be automated by pre-provisioning the 7720 persona in ExtremeCloud IQ. When first booted, the 7720 automatically connects to ExtremeCloud IQ to find its persona. The pre-provisioned OS persona is then remotely enabled on the 7720 system – eliminating the need for manual selection.
Ethernet Fabric Services
The 7720 supports a variety of Ethernet Fabric services, including Extreme's Fabric Connect when running Fabric Engine (VOSS) and Extreme's IP Fabric when running Switch Engine (EXOS). It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 fabric services. Extreme's Fabric Connect and IP Fabric on the 7720 enable the creation of virtualized networks that automate network operations, simplify network provisioning, and enhance security, all while reducing the strain on network and IT personnel.
High-Performance Stacking
Two of the 7720's QSFP28 uplink ports can be used for high-speed 400Gb stacking when running Switch Engine (EXOS). Up to eight systems can be stacked using qualified direct attach cables and/or optical transceivers. Note: Stacking is not supported when running Fabric Engine (VOSS).
Management
The 7720 can be managed by ExtremeCloud IQ and ExtremeCloud IQ-Site Engine for comprehensive unified management with a consolidated view of users, devices and applications across wired and wireless networks.
Zero-touch provisioning from ExtremeCloud IQ lets one quickly bring new 7720 switches online as well as enable the selection of the operating system (OS) persona. Alternatively, 7720 on-box management can be done manually via a web-based GUI or generic CLI.
Specifications:
| 7720-32C Specifications | |
|---|---|
| Ports |
|
| Power Supplies |
|
| Fan Tray |
|
| Weight | 16.3 lb (7.4 kg) no PSU / 19.9 lb (9.0 kg) with two PSUs |
| Performance |
|
| CPU/Memory |
|
| Packet Buffers | 32MB |
| Operating Conditions |
Front-to-Back:
Back-to-Front:
|
| Power and Heat Dissipation | 7720-32C-AC (F/R) | 7720-32C-DC (F/R) |
|---|---|---|
| Minimum Heat Dissipation (BTU/hr) — Idle, no ports linked | 972 BTU/hr | 972 BTU/hr |
| Minimum Power Consumption (Watts) — Idle, no ports linked | 285W | 286W |
| Maximum Heat Dissipation (BTU/hr) — Fans high, all ports 100% traffic | 1340 BTU/hr | 1381 BTU/hr |
| Maximum Power Consumption (Watts) — Fans high, all ports 100% traffic | 393W | 405W |
Software Scaling Values
Switch Engine
- MAC Table: 294,000
- IPv4 ARP Table: 184,000
- IPv4 Route Table: 256,000
- IPv4 Multicast Entries (S,G,V): 104,000
- IPv6 Neighbor Table: 57,000
- IPv6 Route Table: 131,000
- ACLs (Ingress/Egress): 8,192 / 1,024
- QoS Egress Queues per port: 8
- VLANs: 4,094
- Routed VLANs: 2,048
One Policy Scaling
- Policy Profiles: 63
- Unique Permit/Deny Rules per switch: 16,312
Fabric Engine
- MAC Table: 160,000
- IPv4 ARP Table: 40,000
- IPv4 Route Table: 15,000
- IP Multicast Entries (S,G,V): 6,000
- IPv6 Neighbor Table: 32,000
- IPv6 Route Table: Up to 7,000
- ACLs (Ingress/Egress): 512 / 254 for non-IPv6
- QoS Egress Queues per port: 8
- VLANs: 4,059
- IP Interfaces (Routed VLANs): 1,000
Fabric Connect Scaling
- Fabric Adjacencies per switch: 255
- BEB Nodes per VSN: 2,000
- L2 VSNs: 4,000
- L3 VSNs: 256
Documentation:
Download the Extreme Networks 7720 Series Datasheet (.PDF)
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
