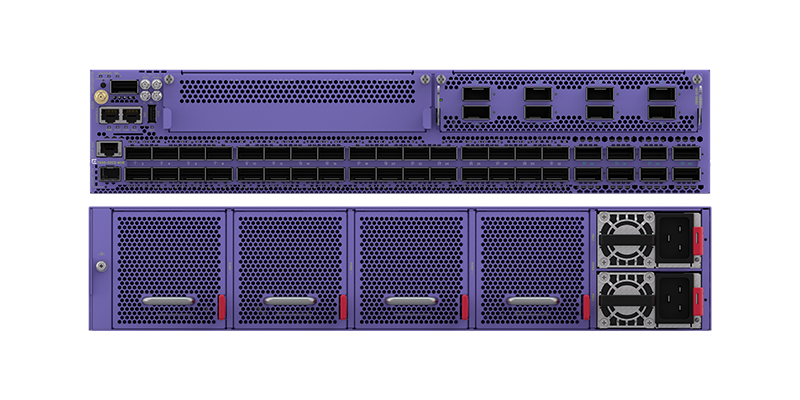

Extreme Networks 7830-32CE-8DE
Universal 400G Fixed-Modular Core Switch
7830 Chassis with 32x100G QSFP28 and 8x400G QSFP-DD fixed ports, 2 unpopulated VIM slots, Base software license, rack-mount kit. PSU and fans must be ordered separately.
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Enterprise core and data center networks increasingly demand scalable, high-performance switching paired with network automation and security. Designed for high-performance 100G and 400G enterprise core and data center networks, the Extreme 7830 switch offers a fixed-modular design in a compact 2RU chassis.
Powered by Extreme Fabric Engine (Fabric), the 7830 simplifies new service deployment and supports secure end-to-end network macro and microsegmentation from network edge to the core. With its high-density scale-out architecture, leading power efficiency, and flexible airflow options, the 7830 platform delivers a solution that optimizes power, cooling, and equipment room space.
Flexible port expansion with Versatile Interface Modules (VIMs) providing 100G, 400G, and 10G/25G port options helps protect customer investment. With both VIM slots populated, the 7830 supports up to 24 x 400G, 120 x 100G, or 216 x 10/25G ports total.
Highlights
- 32 x 100Gb QSFP28 + 8 x 400Gb QSFP-DD fixed ports in a 2RU chassis
- 2 unpopulated VIM expansion slots for flexible port growth
- 25.6 Tbps switching capacity — non-blocking, wire-speed design
- 256-bit MACsec on all ports
- AC and DC power options; front-to-back and back-to-front airflow
- Extreme Fabric Engine OS included free — no additional licenses or controllers required
VIM Expansion Options
- 7830-VIM-24YE — 24 x 10Gb/25Gb SFP28, MACsec ready
- 7830-VIM-16CE — 16 x 100Gb QSFP28, MACsec ready
- 7830-VIM-8DE — 8 x 400Gb QSFP-DD, MACsec ready
- 7830-VIM-24CE — 24 x 100Gb SFP-DD, MACsec ready
Features:
Extreme Platform ONE™
The 7830 is managed by Extreme Platform ONE — the industry's first all-in-one AI for networking platform with integrated security and conversational, multimodal, and agentic AI. A composable workspace provides personalized experiences with multi-domain, multi-layer physical, access, fabric, RF, and service views for Extreme and third-party devices in the cloud. Automation through built-in AI reduces time spent on manual tasks, and inclusive subscriptions make it as simple to buy and renew as it is to use.
Network Fabric
The 7830 supports Extreme's network fabric natively for network virtualization, automation, and network security and segmentation. Fabric automates discovery and onboarding of network and user devices, with sub-second convergence to reduce unplanned downtime and maintenance windows. Automated macro and microsegmentation and stealth topology enhance and automate network security across campus, data center, and branch. Extreme Fabric is included free with the 7830 — no additional licenses or controllers required.
Security and MACsec
256-bit MACsec is supported on all fixed and VIM ports. Extreme Platform ONE Security combines zero-trust network and application access in a single solution, automatically configuring devices to enforce security policies with one click. When used with Extreme Fabric, it automates segmentation and enables the network to flex for efficiency and resiliency while maintaining a consistent security policy end-to-end.
High Availability
The 7830 supports up to 2 field-replaceable, hot-swappable AC or DC internal power supplies and 4 field-replaceable fan modules (N+1 redundant). Both front-to-back and back-to-front airflow configurations are available to match existing data center airflow requirements.
Key Product Capabilities
- Non-blocking, wire-speed switching; integrated design optimized for low latency
- IP Routing: Static, RIP, OSPF, BGP, ECMP, VRRP, IP Anycast Gateway, VRF
- IPv6: Static, RIPng, OSPFv3, BGPv6 Peering, ECMP, VRRP, VRF
- Fabric Connect: L2/L3 VSNs, Inter-VSN Routing, IP Shortcut Routing, IP Multicast-over-Fabric, Fabric Attach, Fabric Extend, Zero-Touch Fabric Connect
- 100Gb ports channelizable as 4 x 10G/25G SFP+ or 1 x 40G QSFP+
- 400Gb ports channelizable as 4 x 100G QSFP28
- Feature-rich VLAN, Link Aggregation, and Spanning Tree support
Specifications:
External Interfaces
| Model | Interfaces |
|---|---|
| 7830-32CE-8DE |
|
| 7830-VIM-24YE | 24 x 10Gb/25Gb SFP28 Modular VIM, all ports MACsec capable |
| 7830-VIM-16CE | 16 x 100Gb QSFP28 Modular VIM; channelizable as 4 x 10G/25G or 1 x 40G; all ports MACsec capable |
| 7830-VIM-8DE | 8 x 400Gb QSFP-DD Modular VIM; channelizable as 4 x 100G QSFP28; all ports MACsec capable |
| 7830-VIM-24CE | 24 x 100Gb SFP-DD Modular VIM, all ports MACsec capable |
Chassis and Performance
| Parameter | Value |
|---|---|
| Switching Capacity | 25.6 Tbps (12.8 Tbps ingress / 12.8 Tbps egress) |
| CPU / Memory | Intel 8-core CPU, 16 GB memory, 128 GB SSD |
| Packet Buffers | 80 MB |
| Chassis Dimensions (H x D x W) | 87.8 x 635 x 439.6 mm (3.46" x 25" x 17.31") |
| Chassis Weight | 17.2 kg (37.92 lb.) |
| VIM Dimensions (H x D x W) | 41.40 x 279.91 x 190.25 mm (1.63" x 11.02" x 7.49") |
| Operating Temperature | 0°C to 45°C |
| Power Supplies | Up to 2 x hot-swappable 2400W AC or DC PSU (ordered separately) |
| Fan Modules | 4 x field-replaceable fan modules, N+1 redundant (ordered separately) |
| Airflow | Front-to-Back (FB) or Back-to-Front (BF) options |
Power Supply Specifications
| 2400W AC PSU XN-ACPWR-2400W-F/R-A |
2400W DC PSU XN-DCPWR-2400W-F/R-A |
|
|---|---|---|
| Voltage Input | 100–240VAC (range 90–264VAC) | 48–60VDC (range 40–72Vdc) |
| Line Frequency | 50–60 Hz | N/A |
| PSU Input | IEC 320 C20 | Terminal Block |
| Weight | 0.95 kg (2.09 lb.) | 0.93 kg (2.05 lb.) |
Software Scaling (Fabric Engine)
| Primary Switch Table | |
|---|---|
| MAC Table | 100,000 |
| ARP Table | 40,000 |
| IPv4 Route Table | 24,000 |
| IP Routing | |
| IP Interfaces (Routable VLANs) | 1,000 |
| VRRP Interfaces | 500 |
| IPv4 VRFs | 256 |
| OSPF v2/v3 Neighbors | 500 |
| RIP Interfaces | 200 |
| BGP v4 & v6 Peers | 256 |
| Anycast GW Interfaces | 1,000 |
| Filters | |
| IPv4 ACL Rules (Ingress/Egress) | 4,092 |
| Fabric | |
|---|---|
| Max IS-IS Areas | 1 |
| Max Fabric Adjacencies (FC and FE) | 255 |
| Max Fabric Nodes per Area (BEB, BCB) | 500 as Interior Node |
| Max BEBs per I-SID | 2,000 |
| L2 VSNs | 4,000 |
| L3 VSNs | 256 |
Accessories and Ordering
At least one PSU is required for 7830 operations. Transceivers/optics, console cables, power cords, Premier license, and MACsec license must be ordered separately. Premier License required for: Layer 3 VSNs, more than 4 active OSPF interfaces, more than 16 BGP peers, and OpenAPI access.
| Part Number | Description |
|---|---|
| VIM Modules | |
| 7830-VIM-24YE | 7830 VIM with 24x10Gb/25Gb SFP28 ports, MACsec ready |
| 7830-VIM-16CE | 7830 VIM with 16x100G QSFP28 ports, MACsec ready |
| 7830-VIM-8DE | 7830 VIM with 8x400G QSFP-DD ports, MACsec ready |
| 7830-VIM-24CE | 7830 VIM with 24x100G SFP56-DD ports, MACsec ready |
| Power Supplies | |
| XN-ACPWR-2400W-FB | 2400W AC PSU, Front-to-Back airflow |
| XN-ACPWR-2400W-BF | 2400W AC PSU, Back-to-Front airflow |
| XN-DCPWR-2400W-FB | 2400W DC PSU, Front-to-Back airflow |
| XN-DCPWR-2400W-BF | 2400W DC PSU, Back-to-Front airflow |
| Fan Modules | |
| XN-FAN-007-FB | Fan module, Front-to-Back airflow |
| XN-FAN-007-BF | Fan module, Back-to-Front airflow |
| Rackmount | |
| XN-4P-RKMT302 | 4-Post Rackmount Kit |
| Console Cables | |
| XN-RJ45-DB9-CONSOLE-CBL | RJ45 to DB9 console cable, 6ft |
| XN-RJ45-USBA-CONSOLE-CBL | RJ45 to USB 2.0 Type A console cable, 6ft |
| XN-RJ45-USBC-CONSOLE-CBL | RJ45 to USB-C console cable, 6ft |
| Software Licenses | |
| 7000-PRMR-LIC-P | Perpetual Premier License for 7000 Series |
| 7000-MACSEC-LIC-P | Perpetual MACsec License for 7000 Series |
Documentation:
Download the Extreme Networks 7830 Series Datasheet (.PDF)
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
- Power cords, console cables, and optical transceivers are not included and must be ordered separately.
7830 Chassis with 32x100G QSFP28 and 8x400G QSFP-DD fixed ports, 2 unpopulated VIM slots, Base software license, rack-mount kit. PSU and fans must be ordered separately.
Our Price: Request a Quote
