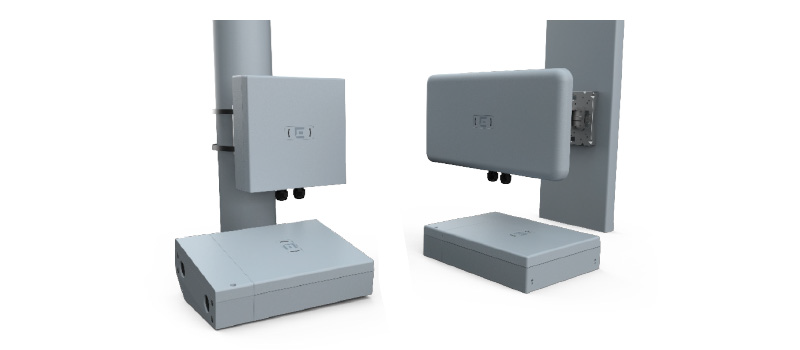

Extreme Networks AP5050D-WW
Wi-Fi 6E Tri-Radio IP67-Rated Outdoor Access Point — Internal Directional Antennas (Software-Selectable 30° or 70°)

Features:

Directional Antenna Design for Stadium Bowl & Directed Coverage

The AP5050D-WW features internal directional antennas with software-selectable 30° or 70° beam widths, making it the ideal choice for stadium bowl seating, concourse areas, gate entrances, and any deployment where directed, focused coverage is required. The software-selectable antenna pattern means no hardware change is needed to adapt to different coverage zones.

Harsh Outdoor and Stadium Optimised

As the Official Wi-Fi Solutions Provider of the NFL and MLB, Extreme understands firsthand the unique challenges of stadiums and harsh outdoor high-density Wi-Fi deployments. The IP67-rated AP5050D-WW builds on that experience, delivering a custom-designed access point for these challenging environments. The enclosure withstands sustained winds up to 150 mph (241 km/h) and gusts up to 165 mph (266 km/h).

High Performance in High-Density Environments

The AP5050D-WW delivers 4x4:4 6 GHz, 4x4:4 5 GHz, and 4x4:4 2.4 GHz with OFDMA technology for up to 10.7 Gbps aggregate throughput. With Wi-Fi 6E performance and multiple software programmable radio modes, the AP5050D-WW can serve the densest environments including stadiums, event venues, schools, transportation facilities, and healthcare facilities.

Tri-Radio Programmable AP

Extreme launched the industry's first software-defined Wi-Fi 6E access point supporting multiple programmable radio modes. The AP5050D-WW can transmit with all three data radios simultaneously (Mode 1), or operate with two data radios plus a dedicated tri-frequency sensor for full-time rogue device monitoring across 2.4, 5, and 6 GHz (Mode 2). Network managers can configure RF technology based on their environment and switch modes as required.

Future-Proof with Wi-Fi 6E

With built-in 6 GHz radios, the AP5050D-WW increases device capacity and improves spectral efficiency, allowing stadiums and high-density environments to extract more out of the Wi-Fi spectrum and future-proof their network investment. The AP5050D-WW comes with multipurpose GPS capabilities, allowing it to detect regional location for approved Wi-Fi 6E outdoor use via Automated Frequency Coordination (AFC).

Network Management Flexibility

The AP5050D-WW can be flexibly managed by Extreme Platform ONE or ExtremeCloud IQ from the cloud or on premises. Extreme Platform ONE is an enterprise connectivity platform integrating networking and security with AI into one powerful and radically simplified experience. It supports NetOps, SecOps, and business teams with built-in automation, AI-driven workflows for configuration, deployment and management, and inventory management that simplifies budgeting, planning, and compliance.

Security

The AP5050D-WW delivers the highest level of security services, beginning with WPA3 support. It acts as an enforcement point for ExtremeCloud Universal ZTNA, providing automated security policy enforcement and SSID management. Extreme Fabric adds further security by automating provisioning and deployment via a Fabric-enabled switch. The AP5050D-WW also supports a stateful L2–L7 DPI firewall, tri-frequency security, and location analytics.

Integrated Bluetooth Low Energy

Bluetooth® 5.2 Low Energy integration supports IoT devices and guest engagement via Apple iBeacon. Enterprises can use API-driven applications to send advertisements directly to shoppers, guests, and conference attendees — ideal for app download pages, captive portals, or site-specific information.

Universal Hardware

The AP5050D-WW is built with Extreme's Universal Hardware technology, allowing multiple deployment use cases through a simple change of software or feature set. The desired persona (cloud or controller) can be selected at startup or changed later, reducing obsolescence without requiring a rip-and-replace approach to hardware.

Specifications:

Radio Specifications

Max Users

• SSID per Radio / Total: 8 / 24
• Users per Radio / Total: 512 / 1536

802.11a

• 5.150–5.850 GHz Operating Frequency
• OFDM Modulation
• Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback

802.11b

• 2.4–2.5 GHz Operating Frequency
• DSSS Modulation
• Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback

802.11g

• 2.4–2.5 GHz Operating Frequency
• OFDM Modulation
• Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback

802.11n

• 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
• HT20 support for 2.4 GHz and 5 GHz; HT40 for 5 GHz
• A-MPDU and A-MSDU Frame Aggregation
• Rates (Mbps): MCS0–MCS31 (6.5 Mbps–600 Mbps)

802.11ac

• 5.150–5.850 GHz Operating Frequency; 256-QAM Modulation
• 4x4:4 Stream MIMO Radio (5 GHz and 2.4 GHz)
• Rates (Mbps): MCS0–MCS9, up to 3466 Mbps, NSS = 1–4
• VHT20 / VHT40 / VHT80 / VHT160 support
• TxBF (Transmit Beamforming)

802.11ax

• 2.4–2.5 GHz, 5.50–5.850 GHz, and 5.925–7.125 GHz Operating Frequencies
• 1024-QAM Modulation; Dual-band OFDMA
• 6G Rate: HE0–HE11 (8 Mbps – 4800 Mbps)
• 5G Rate: HE0–HE11 (8 Mbps – 4800 Mbps)
• 2.4G Rate: HE0–HE11 (8 Mbps – 1148 Mbps)
• 4x4:4 Stream MIMO Radio @ 6 GHz, 5 GHz, and 2.4 GHz
• HE20 / HE40 / HE80 / HE160 support for 6 GHz and 5 GHz
• HE20 / HE40 support for 2.4 GHz
• DL SU-MIMO and MU-MIMO; TxBF

IoT Radio

• Thread, Bluetooth® 5.2 Low Energy, IEEE 802.15.4

GPS Radio

• L1 frequency (1575.42 MHz) — for AFC geo-location

Interfaces

• Eth0: 5/2.5/1GE with Power over Ethernet (PoE)
• Eth1: 2.5/1GE/100 with PoE PSE 15.4W (when 802.3bt on Eth0)
• 802.3az Energy-Efficient Ethernet (EEE)

Power

• 802.3at PoE: Typical 21W; Max 25.5W (without PoE out)
• 802.3bt: PoE out enabled

Physical Specifications — AP5050D-WW

• Dimensions: 11.3" x 19.1" x 3.4" (28.6 cm x 48.3 cm x 8.7 cm)
• Weight: 10.2 lb (4.6 kg)
• IP67 Outdoor Rated
• Wind resistance: 150 mph (241 km/h) sustained; 165 mph (266 km/h) gusts
• Trusted Platform Module (TPM)

Antenna Gain — AP5050D-WW (30° Beam Width)

Software Mode	Radio 1	Radio 2	Radio 3	IoT Radio
Mode 1	2G – 8.8 dBi	5G – 8.1 dBi	6G – 8.0 dBi	2.7 dBi
Mode 2	2G 8.8 dBi / 5G 6.7 dBi / 6G 6.4 dBi (sensor)	5G – 8.1 dBi	6G – 8.0 dBi	2.7 dBi

Antenna Gain — AP5050D-WW (70° Beam Width)

Software Mode	Radio 1	Radio 2	Radio 3	IoT Radio
Mode 1	2G – 6.2 dBi	5G – 6.7 dBi	6G – 6.4 dBi	2.7 dBi
Mode 2	2G 6.2 dBi / 5G 6.7 dBi / 6G 6.4 dBi (sensor)	5G – 6.7 dBi	6G – 6.4 dBi	2.7 dBi

Environmental

• Operating Temperature: -40°C to +60°C (-40°F to 140°F)
• Storage Temperature: -40°C to 70°C
• Humidity: 0% to 95% (non-condensing)
• IP67 Outdoor Rating

Environmental Compliance

• EU RoHS – 2011/65/EU & Amendments (EU) 2015/863
• EU WEEE – 2012/19/EU
• EU REACH – Regulation (EC) No 1907/2006
• EU SCIP – EU Waste Framework Directive
• China RoHS – SJ/T 11364-2014
• Taiwan RoHS CNS 15663 (2013.7)

Regulatory Compliance

Warranty

The AP5050D-WW is covered under Extreme's Warranty policy. For details visit: www.extremenetworks.com/support/policies.

Power & Receiver Sensitivity:

2.4 GHz Radio

Channel	Data Rate	Power (dBm)	Sensitivity (dBm)
11b	1–11 Mbps	18	-97, -89
11g	6 Mbps	18	-95
	54 Mbps	16	-77
11n HT20	MCS0, 7	18, 16	-95, -76
11n HT40	MCS0, 7	18, 16	-93, -75
11ax HE20	HE0, 11	18, 14	-95, -65
11ax HE40	HE0, 11	18, 14	-92, -62

5 GHz Radio

Channel	Data Rate	Power (dBm)	Sensitivity (dBm)
11a	6 Mbps	18	-95
	54 Mbps	16	-76
11n HT20	MCS0, 7	18, 16	-95, -75
11n HT40	MCS0, 7	18, 16	-92, -72
11ac VHT20	MCS0, 8	18, 15	-94, -71
11ac VHT40	MCS0, 9	18, 15	-92, -68
11ac VHT80	MCS0, 9	18, 15	-89, -65
11ac VHT160	MCS0, 9	16, 15	-85, -61
11ax HE20	HE0, 11	18, 14	-94, -64
11ax HE40	HE0, 11	18, 14	-91, -61
11ax HE80	HE0, 11	18, 14	-88, -58
11ax HE160	HE0, 11	16, 14	-84, -54

6 GHz Radio

Channel	Data Rate	Power (dBm)	Sensitivity (dBm)
11a	6 Mbps	18	-93
	54 Mbps	16	-75
11n HT20	MCS0, 7	18, 15	-93, -75
11n HT40	MCS0, 7	17, 15	-92, -73
11ac VHT20	MCS0, 8	18, 14	-93, -71
11ac VHT40	MCS0, 9	17, 13	-92, -67
11ac VHT80	MCS0, 9	17, 13	-89, -64
11ac VHT160	MCS0, 9	16, 13	-85, -61
11ax HE20	HE0, 11	18, 12	-92, -63
11ax HE40	HE0, 11	17, 12	-92, -60
11ax HE80	HE0, 11	17, 12	-88, -58
11ax HE160	HE0, 11	16, 12	-84, -54

Documentation:

Download the Extreme Networks AP5050U/D Datasheet (.PDF)
