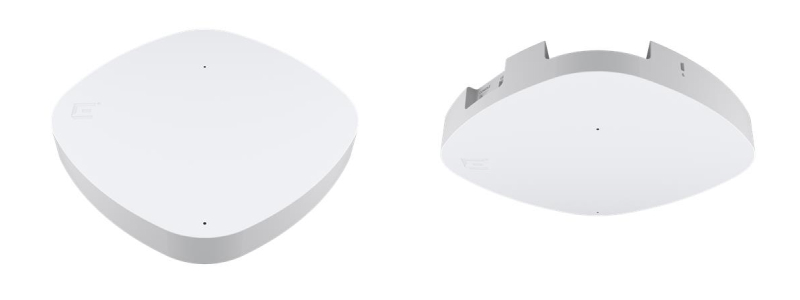

Extreme Networks AP4020
Flexible, Highly Secure and Cloud-Managed Wi-Fi 7 Access Point
Indoor Quad Radio Wi-Fi 7 (2x2:2): 2.4 GHz, 5 GHz, 6 GHz and dedicated sensor, Multi-Rate Port, internal antennas. T-Bar mount included. World SKU.
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
The AP4020 is a Wi-Fi 7 access point that delivers increased performance and security across a range of use cases for a seamless wireless experience. Manageable by Extreme Platform ONE™, ExtremeCloud™ IQ/Controller, this AP is built on industry-leading Universal Hardware, enabling investment protection and deployment flexibility. It simplifies operations, reduces risk and saves time by leveraging Extreme's AI. The AP4020 can also automatically enforce secure access rules from Extreme Platform ONE Security.
The AP4020 Wi-Fi 7 Access Point is engineered for peak performance in enterprise environments, featuring a quad-radio design with three 2x2:2 radios. With support across the 6 GHz, 5 GHz, and 2.4 GHz bands, it delivers the next generation of high-efficiency, high-performance connectivity using 802.11be (Extremely High Throughput). In addition to its advanced speed and bandwidth capabilities, the AP4020 includes a full-time dedicated security sensor, ensuring robust protection while maintaining optimal network performance.
Extreme offers one of the most extensive selections of switches to connect Wi-Fi 6E and Wi-Fi 7 access points. The switches that connect the APs include flexible PoE offering 30/60/90 watts of power on their multi-gigabit ports to support the higher power requirements of 6 GHz Wi-Fi.
Key Highlights
- Wi-Fi 7 technology — high throughput, low latency, and extended range
- Manageable by Extreme Platform ONE™, ExtremeCloud™ IQ/Controller
- Reduced mean time to resolution with AI
- Extreme Platform ONE Security policy enforcement, Fabric integration
- Simultaneous IT & OT using dual IoT radios
- Quad-radio design: three 2x2:2 data radios (2.4/5/6 GHz) plus dedicated tri-frequency security sensor
- Operational Mode 1: 2.4 GHz / 5 GHz / 6 GHz data radios and sensor
- Operational Mode 2: 2.4 GHz, dual 5 GHz, and sensor
- Cellular Coexistence Filter (CCF) — minimizes interference from cellular networks
- Fully functional with 802.3at; built-in PoE failover
Features:
Wi-Fi 7 (802.11be) Technology
Wi-Fi 7 (802.11be) introduces benefits across the 2.4 GHz, 5 GHz, and 6 GHz bands with reduced latency and jitter for time-sensitive networking applications. Wi-Fi 7 capabilities such as 320 MHz channels, 4K-QAM, and Multi-Link Operation (MLO) help enable superior speeds and high-density performance. The 6 GHz band enables improved quality of service (QoS) in dense environments, new applications and use cases, and an improved user experience.
Extreme Platform ONE™
Extreme Platform ONE™ is an enterprise connectivity platform that integrates networking and security with AI into one powerful and radically simplified experience and licensing model. It supports NetOps, SecOps, and business teams with built-in automation and enables organizations to regain control, unlock innovation, and boost productivity through one integrated experience, AI-driven workflows for configuration, deployment, and management, and simplified licensing.
Software-Defined Radios
The AP4020 features two distinct software-defined radio (SDR) modes for different deployment scenarios. Dual 5 GHz supports high-density deployments with a dedicated sensor. Featuring quad radios, it can transmit with multiple combinations of three data radios across the 2.4 GHz, 5 GHz, and 6 GHz bands in addition to an always-on dedicated tri-frequency sensor. The AP4020 features superior tri-frequency radio performance with a multiband filter that reduces interference and enables 5 GHz and 6 GHz operation across all available channels without restrictions.
Modern IoT Platform
The AP4020 features dual IoT radios enabling multiple concurrent IoT use cases, eliminating the need for an overlay infrastructure. It integrates Bluetooth® to connect with IoT devices wirelessly and to engage loyal customers with Apple iBeacon. Enterprises can use API-driven applications to send advertisements directly to shoppers, guests, and conference attendees.
Universal Hardware
The AP4020 is built with Extreme's Universal Hardware technology that allows multiple deployment use cases through a simple change of the software or feature set. The Universal World SKU AP allows customers, partners, and distributors to order one model for any region where Extreme Networks products are sold, replacing the age-old problem of country-specific models.
Security
The AP4020 delivers the highest level of security services, beginning with support for the latest WPA3 security certifications. It acts as an enforcement point for Extreme Platform ONE Security — the industry's most complete network access security solution. Extreme Fabric adds additional security by automating provisioning and deployment by connecting to a Fabric-enabled switch. The AP supports a stateful L2-L7 DPI firewall for context-based access security, tri-frequency security, a location analytics sensor, and a dedicated security sensor for rich insights and threat detection when paired with AirDefense Essentials.
Specifications:
Radio Specifications
Max Users
- SSID per Radio/Total: 16/48
- Users per Radio/Total: 512/1,536
802.11be (Wi-Fi 7)
- 2.4 GHz–2.5 GHz, 5.15–5.850 GHz, and 5.925–7.125 GHz operating frequencies
- 802.11be modulation (4096-QAM)
- 2x2:2 stream MIMO at 6 GHz, 5 GHz, and 2.4 GHz
- Rates: 6G up to 5,765 Mbps; 5G up to 2,882 Mbps; 2.4G up to 688 Mbps
- EHT20/EHT40/EHT80/EHT160/EHT320 for 6 GHz
- EHT20/EHT40/EHT80/EHT160 for 5 GHz
- EHT20/EHT40 for 2.4 GHz
- UL/DL SU-MIMO and MU-MIMO, TxBF
Legacy Standards: 802.11a/b/g/n/ac/ax also supported
Dual IoT Radios
- (2) radios: Thread, Zigbee®, Bluetooth 5.4 Low Energy, IEEE 802.15.4
Interfaces
- Eth0: 100/1,000/2,500/5,000 Mbps autosensing, PoE PD
- Eth1: 100/1,000/2,500 Mbps autosensing, PoE PD
- 802.3az Energy-Efficient Ethernet (EEE)
- USB 2.0 Type A, 5V/500mA with PoE 802.3at or 5V/1,000mA with PoE 802.3bt
Power Options
- 802.3at PoE: Typical 21W with USB 2.5W; Max 25.5W with 2.5W USB
- 802.3bt PoE: Max 28W with 5W USB
- Built-in PoE failover
Physical Specifications
| Model | Dimensions | Weight |
|---|---|---|
| AP4020 | 238 x 238 x 38 mm 9.37" x 9.37" x 1.50" |
1.30 kg / 2.9 lbs |
| AP4020X | 288 x 245 x 43 mm 11.34" x 9.65" x 1.69" |
1.43 kg / 3.2 lbs |
| AP4020FX | 245 x 245 x 43 mm 9.65" x 9.65" x 1.69" |
1.40 kg / 3.1 lbs |
Environmental
- AP4020 Operating: 0°C to 50°C (32°F to 122°F)
- AP4020X/FX Operating: -20°C to 55°C (-4°F to 131°F)
- Storage: 0°C to 70°C (32°F to 158°F)
- Humidity: 0% to 95% (non-condensing)
Security Hardware
- Kensington lock slot
- Trusted Platform Module (TPM)
Internal Antennas
- (2) dual band 2.4 GHz and 5 GHz
- (2) single band 5 GHz
- (2) single band 6 GHz
- (1) 2 GHz/5 GHz/6 GHz sensor
- (3) IoT sensor
Mounting
- 15/16" flush ceiling tile — included in box
- Wall mount — included in box or sold as accessory
- Sculpted ceiling tile 15/16" and 9/16" wide t-bar — sold as accessory
- Beam, Junction box, IL or 9/16" t-bar, SL (Silhouette) — sold as accessory
Regulatory & Safety
- UL 60950-1 / UL/CuL 62368-1 Listed, UL 2043 Plenum rated
- EN 62368-1 / CB IEC 62368-1
- AS/NZS 60950-1 (Australia/New Zealand)
- FCC CFR 47 Part 15 Class B / ICES-003 Class B
- EN 55032 Class B / CISPR 32 Class B / AS/NZS CISPR32
- CE: 2014/53/EU Radio Equipment Directive
Wi-Fi Alliance Certifications
- Wi-Fi CERTIFIED™ 7 / Wi-Fi CERTIFIED 6® Release 2
- WPA2™, WPA3™ — Enterprise and Personal
- Protected Management Frames, Wi-Fi Enhanced Open™
Antenna Gain
| Software Mode | Radio 0 | Radio 1 | Radio 2 | Sensor | IoT Radio 1 | IoT Radio 2 |
|---|---|---|---|---|---|---|
| 1 | 2.4 GHz – 1.5 dBi | 5 GHz – 5.3 dBi | 6 GHz – 5.9 dBi | 2.4G: 2.2 dBi 5G: 4.5 dBi 6G: 5.4 dBi |
2.2 dBi | 1.6 dBi |
| 2 | 2.4 GHz – 1.5 dBi | 5 GHz – 5.3 dBi | 5 GHz – 3.7 dBi | 2.4G: 2.2 dBi 5G: 4.5 dBi 6G: 5.4 dBi |
2.2 dBi | 1.6 dBi |
Ordering Information
| SKU | Description |
|---|---|
| AP4020-WW | Indoor Quad Radio Wi-Fi 7 (2x2:2): 2.4/5/6 GHz + dedicated sensor, Multi-Rate Port, internal antennas, T-Bar mount included. World SKU |
| AP4020X-WW | Indoor Quad Radio Wi-Fi 7 (2x2:2): 2.4/5/6 GHz + dedicated sensor, Multi-Rate, external antennas (2.4/5 GHz), integral 6 GHz, extended temp, (4) AI-TS06360 antennas included. World SKU |
| AP4020-WW-TAA | AP4020-WW, TAA Compliant |
| AP4020X-WW-TAA | AP4020X-WW, TAA Compliant |
| AP4020FX-WW | Indoor Quad Radio Wi-Fi 7 (2x2:2): 2.4/5/6 GHz + dedicated sensor, Multi-Rate Port, external antennas, extended temp. World SKU (US/Canada only) |
Power and Sensitivity:
| 2.4 GHz Radio | |||
|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11b | 1–11 Mbps | 17 | -93, -86 |
| 11g | 6 Mbps | 17 | -92 |
| 54 Mbps | 15 | -73 | |
| 11n HT20 | MCS0, 7 | 17, 15 | -92, -72 |
| 11n HT40 | MCS0, 7 | 17, 15 | -90, -70 |
| 11ax HE20 | HE0, 11 | 17, 13 | -92, -61 |
| 11ax HE40 | HE0, 11 | 17, 13 | -90, -59 |
| 11be EHT20 | EHT1, 13 | 17, 12 | -91, -54 |
| 11be EHT40 | EHT1, 13 | 17, 12 | -89, -52 |
| 5 GHz Full Radio | |||
|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11a | 6 Mbps | 18 | -92 |
| 54 Mbps | 16 | -73 | |
| 11n HT20 | MCS0, 7 | 18, 16 | -92, -73 |
| 11n HT40 | MCS0, 7 | 18, 16 | -90, -71 |
| 11ac VHT20 | MCS0, 8 | 18, 15 | -92, -70 |
| 11ac VHT40 | MCS0, 9 | 18, 15 | -90, -64 |
| 11ac VHT80 | MCS0, 9 | 18, 15 | -88, -62 |
| 11ac VHT160 | MCS0, 9 | 18, 15 | -85, -60 |
| 11ax HE20 | HE0, 11 | 18, 14 | -92, -62 |
| 11ax HE40 | HE0, 11 | 18, 14 | -90, -60 |
| 11ax HE80 | HE0, 11 | 18, 14 | -88, -58 |
| 11ax HE160 | HE0, 11 | 18, 14 | -85, -55 |
| 11be EHT20 | EHT0, 13 | 18, 12 | -92, -55 |
| 11be EHT40 | EHT0, 13 | 18, 12 | -90, -53 |
| 11be EHT80 | EHT0, 13 | 18, 12 | -87, -51 |
| 11be EHT160 | EHT0, 13 | 18, 12 | -87, -51 |
| 5 GHz High Radio | |||
|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11a | 6 Mbps | 18 | -91 |
| 54 Mbps | 16 | -72 | |
| 11n HT20 | MCS0, 7 | 18, 16 | -91, -72 |
| 11n HT40 | MCS0, 7 | 18, 16 | -89, -70 |
| 11ac VHT20 | MCS0, 8 | 18, 15 | -91, -69 |
| 11ac VHT40 | MCS0, 9 | 18, 15 | -89, -65 |
| 11ac VHT80 | MCS0, 9 | 18, 15 | -87, -62 |
| 11ac VHT160 | MCS0, 9 | 18, 15 | -85, -60 |
| 11ax HE20 | HE0, 11 | 18, 14 | -91, -61 |
| 11ax HE40 | HE0, 11 | 18, 14 | -89, -59 |
| 11ax HE80 | HE0, 11 | 18, 14 | -87, -57 |
| 11ax HE160 | HE0, 11 | 18, 14 | -85, -55 |
| 11be EHT20 | EHT0, 13 | 18, 12 | -91, -54 |
| 11be EHT40 | EHT0, 13 | 18, 12 | -88, -52 |
| 11be EHT80 | EHT0, 13 | 18, 12 | -86, -50 |
| 11be EHT160 | EHT0, 13 | 18, 12 | -84, -48 |
| 5 GHz Low Radio | |||
|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11a | 6 Mbps | 18 | -94 |
| 54 Mbps | 16 | -75 | |
| 11n HT20 | MCS0, 7 | 18, 16 | -94, -75 |
| 11n HT40 | MCS0, 7 | 18, 16 | -92, -73 |
| 11ac VHT20 | MCS0, 8 | 18, 15 | -94, -72 |
| 11ac VHT40 | MCS0, 9 | 18, 15 | -92, -66 |
| 11ac VHT80 | MCS0, 9 | 18, 15 | -90, -64 |
| 11ac VHT160 | MCS0, 9 | 18, 15 | -88, -61 |
| 11ax HE20 | HE0, 11 | 18, 14 | -94, -64 |
| 11ax HE40 | HE0, 11 | 18, 14 | -92, -62 |
| 11ax HE80 | HE0, 11 | 18, 14 | -90, -59 |
| 11ax HE160 | HE0, 11 | 18, 14 | -87, -56 |
| 11be EHT20 | EHT0, 13 | 18, 12 | -94, -56 |
| 11be EHT40 | EHT0, 13 | 18, 12 | -92, -54 |
| 11be EHT80 | EHT0, 13 | 18, 12 | -89, -52 |
| 11be EHT160 | EHT0, 13 | 18, 12 | -86, -49 |
| 6 GHz Full Radio | |||
|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11a | 6 Mbps | 18 | -92 |
| 54 Mbps | 16 | -73 | |
| 11n HT20 | MCS0, 7 | 18, 16 | -92, -73 |
| 11n HT40 | MCS0, 7 | 18, 16 | -90, -71 |
| 11ac VHT20 | MCS0, 8 | 18, 15 | -92, -70 |
| 11ac VHT40 | MCS0, 9 | 18, 15 | -90, -65 |
| 11ac VHT80 | MCS0, 9 | 18, 15 | -88, -62 |
| 11ac VHT160 | MCS0, 9 | 18, 15 | -85, -59 |
| 11ax HE20 | HE0, 11 | 18, 14 | -92, -62 |
| 11ax HE40 | HE0, 11 | 18, 14 | -90, -60 |
| 11ax HE80 | HE0, 11 | 18, 14 | -88, -58 |
| 11ax HE160 | HE0, 11 | 18, 14 | -85, -55 |
| 11be EHT20 | EHT0, 13 | 18, 12 | -92, -55 |
| 11be EHT40 | EHT0, 13 | 18, 12 | -90, -53 |
| 11be EHT80 | EHT0, 13 | 18, 12 | -88, -51 |
| 11be EHT160 | EHT0, 13 | 18, 12 | -86, -48 |
| 11be EHT320 | EHT0, 13 | 18, 12 | -83, -45 |
Documentation:
Download the Extreme Networks AP4020 Datasheet (.PDF)
