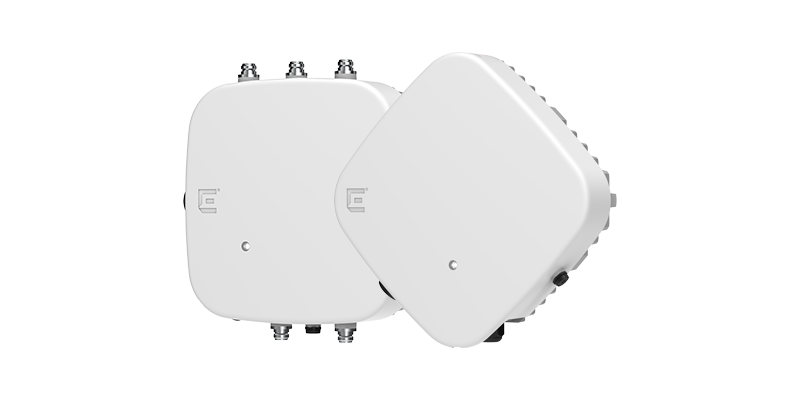

Extreme Networks AP4060 Series
Flexible, Highly Secure and Cloud-Managed Wi-Fi 7 Weatherized Access Point

Features:

Wi-Fi 7 (802.11be) Technology

Wi-Fi 7 (802.11be) introduces benefits across the 2.4 GHz, 5 GHz, and 6 GHz* bands with reduced latency and jitter for time-sensitive networking applications. Wi-Fi 7 capabilities such as 320 MHz channels, 4K-QAM, and Multi-Link Operation (MLO) help enable superior speeds and high-density performance. The 6 GHz band enables improved quality of service (QoS) in dense environments, new applications and use cases, and an improved user experience.

Extreme Platform ONE™

Extreme Platform ONE is Extreme Networks' enterprise connectivity platform that integrates networking and security with AI into one powerful and radically simplified experience and licensing model. It supports NetOps, SecOps, and business teams with built-in automation and enables organizations to regain control, unlock innovation, and boost productivity through one integrated experience, AI-powered workflows for configuration, deployment, and management, and simplified licensing.

Software-Defined Radios

The AP4060 features two distinct software-defined radio (SDR) modes. Dual 5 GHz supports high-density deployments with a dedicated sensor. Featuring quad radios, it can transmit with multiple combinations of three data radios across the 2.4 GHz, 5 GHz, and 6 GHz bands in addition to an always-on dedicated tri-band sensor. A multiband filter reduces interference and enables 5 GHz and 6 GHz operation across all available channels without restrictions.

6 GHz Spectrum and AFC

The AP4060 Series ships with integrated GPS to unlock the full benefits of 6 GHz standard power operation in the USA and Canada. The GPS provides precise geolocation to an AFC (Automated Frequency Coordination) service via Extreme Platform ONE or ExtremeCloud IQ, which dynamically assigns approved channels and power levels for optimal performance and regulatory compliance.

Modern IoT Platform

The AP4060 features dual IoT radios enabling multiple concurrent IoT use cases. It integrates Bluetooth® to connect with IoT devices wirelessly and to engage loyal customers with Apple iBeacon. Enterprises can use API-driven applications to send advertisements directly to shoppers, guests, and conference attendees.

Universal Hardware

The AP4060 is built with Extreme's Universal Hardware technology that allows multiple deployment use cases through a simple change of the software or feature set. Universal World SKUs allow customers, partners, and distributors to order one model for any region where Extreme Networks products are sold.

Security

The AP4060 delivers the highest level of security services, beginning with support for the latest WPA3 security certifications. It acts as an enforcement point for Extreme Platform ONE Security. Extreme Fabric adds additional security by automating provisioning and deployment by connecting to a Fabric-enabled switch. The AP supports a stateful L2-L7 DPI firewall for context-based access security, tri-frequency security, a location analytics sensor, and a dedicated security sensor for rich insights and threat detection when paired with Extreme AirDefense.

* 6 GHz operation is country dependent

Specifications:

Antenna Gain Matrix – AP4060

Ordering Information

Note: 6 GHz operation is country dependent. AP4060X weatherized antennas use N-Type connectors.

Power and Sensitivity:

Documentation:
