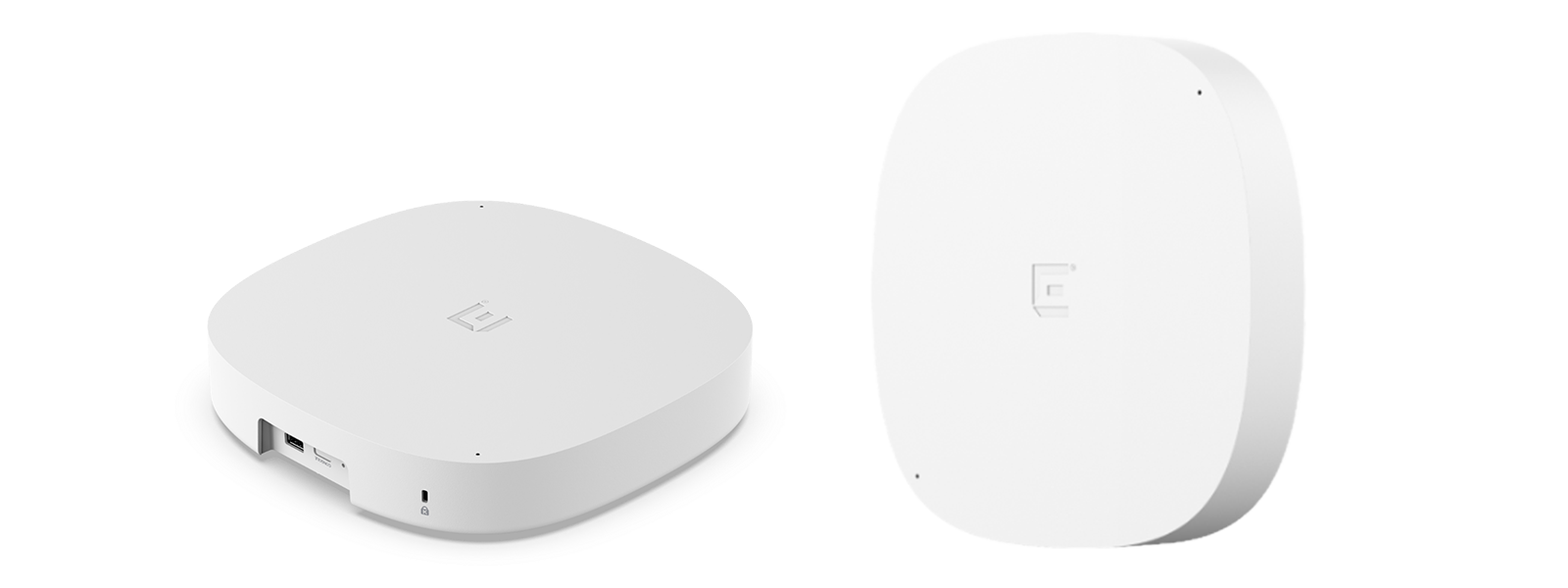

Extreme Networks AP5022 Series
High-Performance Wi-Fi 7 Indoor Wireless Access Point
Indoor Quad Radio Wi-Fi 7 (4x4:4): 2.4 GHz, 5 GHz, 6 GHz & dedicated full time sensor, Dual IoT, Dual 5 GHz, Dual 6 GHz, Multi-Rate Port, internal omnidirectional antennas. T-Bar mount included. World SKU.
Our Price: Request a Quote
Indoor Quad Radio Wi-Fi 7 (4x4:4): 2.4 GHz, 5 GHz, 6 GHz & dedicated full time sensor, Dual IoT, Dual 5 GHz, Dual 6 GHz, Multi-Rate Port, internal 60° directional antennas. T-Bar mount included. World SKU.
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
The AP5022 series of premium-tier Wi-Fi 7 indoor access points deliver enhanced wireless experiences, faster speeds, and a range of use cases. Built on Extreme's Universal Hardware Platform technology, this AP enables deployment flexibility and leverages Extreme Platform ONE™ AIOps management to provide improved user experiences.
With three 4x4:4 radios, the AP5022 provides high-efficiency, high-performance 802.11be aggregate data rates of up to 20 Gbps in the 6 GHz, 5 GHz, and 2.4 GHz bands. Designed for high-density environments such as schools, warehouses, healthcare facilities, and stadiums, the AP5022 operates with fully featured performance capabilities using 802.3bt PoE, simplifying power capacity planning.
Unlike other APs that scan only part time, the AP5022 features a dedicated 2x2 tri-band sensor that monitors rogue devices full time, eliminating the risk of vulnerability and attacks.
The AP5022 series includes three models, each designed for specific deployment needs:
- AP5022 — internal omnidirectional antennas, delivering optimal coverage for high-density environments such as carpeted enterprise offices, healthcare facilities, and retail spaces.
- AP5022S6D — internal 60° directional antennas, delivering focused coverage for warehouses, manufacturing facilities, and logistics operations.
- AP5022FX — external antenna connectivity and extended temperature range -20°C to 50°C, enabling flexible antenna choices for carpeted enterprise spaces, arenas, lecture halls, warehouses, and manufacturing facilities.
Key Highlights
- Wi-Fi 7 technology — high throughput, low latency, and extended range
- Manageable by Extreme Platform ONE™/ExtremeCloud™ IQ Controller
- Extreme Platform ONE Security policy enforcement, Fabric integration
- Quad-Radio Design: 2.4 GHz (4x4:4), 5 GHz (4x4:4), 6 GHz (4x4:4)**, dedicated Tri-band 2x2 Sensor
- Two IoT Radios with BLE, Zigbee, Thread capabilities; Ultra-wideband (UWB) ready
- Operational Modes: 2.4/5/6 GHz + tri-band sensor; 5/5/6 GHz + tri-band sensor; 6/5/6 GHz + tri-band sensor
- Cellular Coexistence Filter (CCF) minimizes interference from cellular networks
- Fully functional with 802.3bt; Wi-Fi 7 functionality with 802.3at
- Built-in PoE failover or PSE (PoE Out)
- 6 GHz Spectrum with AFC support (LPI + standard power for USA/Canada)
** 6 GHz is country-dependent
Features:
Wi-Fi 7 (802.11be) Technology
Wi-Fi 7 (802.11be) introduces benefits across the 2.4 GHz, 5 GHz, and 6 GHz bands with reduced latency and jitter for time-sensitive networking applications. Wi-Fi 7 capabilities such as 320 MHz channels, 4K-QAM, and Multi-Link Operation (MLO) help enable superior speeds and high-density performance. The 6 GHz band enables improved quality of service (QoS) in dense environments, new applications and use cases, and an improved user experience.
Extreme Platform ONE™
Extreme Platform ONE is an enterprise connectivity platform that integrates networking and security with AI into one powerful and radically simplified experience and licensing model. It supports NetOps, SecOps, and business teams with built-in automation and enables organizations to regain control, unlock innovation, and boost productivity through one integrated experience, AI-powered workflows for configuration, deployment, and management, and simplified licensing.
Software-Defined Radios
The AP5022 series features software-defined Wi-Fi 7 AP capabilities supporting not only dual 5 GHz and dual 6 GHz modes, but also additional software-programmable modes to optimally manage radios for the highest level of client performance. The AP5022 intelligently monitors the software-configurable radios, enabling network managers to configure network RF technology based on the user environment. A multiband filter reduces interference and enables 5 GHz and 6 GHz operation across all available channels without restrictions.
6 GHz Spectrum and AFC
The AP5022 series supports the 6 GHz spectrum with Low Power Indoor (LPI) as well as standard power for the USA and Canada. Standard power support requires additional deployment steps to obtain AFC (Automated Frequency Coordination) authorization — including external geolocation input and anchor-based location support.
Modern IoT Platform
The AP5022 series features dual IoT radios enabling multiple concurrent IoT use cases. It is also hardware ready to support Ultra-wideband (UWB) for cm-level accuracy with indoor location services. The AP5022 integrates Bluetooth® Low Energy (BLE) to connect with IoT devices wirelessly and to engage customers with Apple iBeacon.
Universal Hardware
The AP5022 series is built with Extreme's Universal Hardware technology that allows multiple deployment use cases through a simple change of the software or feature set. Universal World SKUs allow customers, partners, and distributors to order one model for any region where Extreme Networks products are sold.
Security
The AP5022 series delivers the highest level of security services, beginning with support for the latest WPA3 security certifications. It acts as an enforcement point for Extreme Platform ONE Security. Extreme Fabric adds additional security by automating provisioning and deployment by connecting to a Fabric-enabled switch. The AP supports a stateful L2-L7 DPI firewall for context-based access security, tri-band security, a location analytics sensor, and a dedicated security sensor for rich insights and threat detection when paired with AirDefense Essentials.
Specifications:
Radio Specifications
Max Users
- SSID per Radio/Total: 16/48
- Users per Radio/Total: 512/1,536
802.11be (Wi-Fi 7)
- 2.4 GHz–2.5 GHz, 5.15–5.850 GHz, and 5.925–7.125 GHz operating frequencies
- 802.11be modulation (4096-QAM)
- 4x4:4 stream MIMO at 6 GHz, 5 GHz, and 2.4 GHz
- Rates: 6G up to 11,500 Mbps; 5G up to 5,700 Mbps; 2.4G up to 1,300 Mbps
- EHT20/EHT40/EHT80/EHT160/EHT320 for 6 GHz
- EHT20/EHT40/EHT80/EHT160 for 5 GHz
- EHT20/EHT40 for 2.4 GHz
- UL/DL SU-MIMO and MU-MIMO, TxBF
Legacy Standards: 802.11a/b/g/n/ac/ax also supported
IoT Support
- (2) radios: Thread, Zigbee®, Bluetooth Low Energy (BLE) 5.4, IEEE 802.15.4
- Ultra-wideband (UWB) ready
Interfaces
- ETH0: 100/1,000/2,500/5,000/10,000 Mbps autosensing, PoE PD, MACsec (802.1AE)
- ETH1: 100/1,000/2,500/5,000/10,000 Mbps autosensing, PoE PD in or 15.4W PSE out mode (requires 802.3bt on ETH0), PoE Hitless failover
- 802.3az Energy-Efficient Ethernet (EEE)
- USB 2.0 Type A, 5V/1,000mA with PoE 802.3bt
Power Options
- 802.3at PoE: Typical 21W; Max 25.5W without PSE or USB
- 802.3bt PoE: Typical 26W without USB; Max 38W with 5W USB; 32W without PSE or USB
- 12V DC/3A (DC has priority when both sources available)
Physical Specifications
| Model | Dimensions | Weight |
|---|---|---|
| AP5022 | 10.16" x 10.16" x 1.81" (258 x 258 x 46 mm) |
1.63 kg (3.59 lbs) |
| AP5022S6D | 10.16" x 10.16" x 1.81" (258 x 258 x 46 mm) |
1.58 kg (3.48 lbs) |
| AP5022FX | 10.16" x 10.43" x 1.81" (258 x 265 x 46 mm) |
1.60 kg (3.52 lbs) |
Environmental
- AP5022/S6D Operating: 0°C to 50°C (32°F to 122°F)
- AP5022FX Operating: -20°C to 50°C (-4°F to 122°F)
- Storage: 0°C to 70°C (32°F to 158°F)
- Humidity: 0% to 95% (non-condensing)
Security Hardware
- Kensington lock slot
- Trusted Platform Module (TPM)
Mounting
- 15/16" flush ceiling tile — included in box
- Wall mount — included in box or sold as accessory
- Sculpted ceiling tile 15/16" and 9/16" wide t-bar — sold as accessory
- Beam, Junction box, IL or 9/16" t-bar, SL (Silhouette) — sold as accessory
Regulatory & Safety
- UL 60950-1 / U/CuL 62368-1 Listed, UL 2043 Plenum rated
- EN 62368-1 / CB IEC 62368-1
- AS/NZS 62368-1-1 (Australia/New Zealand)
- FCC CFR 47 Part 15 Class B / ICES-003 Class B
- EN 55032 Class B / CISPR 32 Class B / AS/NZS CISPR32
- CE: 2014/53/EU Radio Equipment Directive; EN 18031-1 Cybersecurity
Wi-Fi Alliance Certifications
- Wi-Fi CERTIFIED™ 7 / Wi-Fi CERTIFIED™ 6 Release 2
- WPA™, WPA2™, WPA3™ — Enterprise and Personal
- Protected Management Frames, Wi-Fi Enhanced Open™
Antenna Gain Matrix
AP5022 (Omnidirectional)
| Op. Mode | Radio 1 | Radio 2 | Radio 3 | Scan Radio | IoT Radio 1 | IoT Radio 2 |
|---|---|---|---|---|---|---|
| 1 | 2.4 GHz – 3.5 dBi | 5 GHz – 6.7 dBi | 6 GHz – 5.7 dBi | 2.4G: 3.1 dBi 5G: 4.7 dBi 6G: 6.1 dBi | 5.4 dBi | 4.0 dBi |
| 2 | 5 GHz – 5.3 dBi | 5 GHz – 6.7 dBi | 6 GHz – 5.7 dBi | 2.4G: 3.1 dBi 5G: 4.7 dBi 6G: 6.1 dBi | 5.4 dBi | 4.0 dBi |
| 3 | 6 GHz – 5.1 dBi | 5 GHz – 6.7 dBi | 6 GHz – 5.7 dBi | 2.4G: 3.1 dBi 5G: 4.7 dBi 6G: 6.1 dBi | 5.4 dBi | 4.0 dBi |
AP5022S6D (60° Directional)
| Op. Mode | Radio 1 | Radio 2 | Radio 3 | Scan Radio | IoT Radio 1 | IoT Radio 2 |
|---|---|---|---|---|---|---|
| 1 | 2.4 GHz – 3.5 dBi | 5 GHz – 7.0 dBi | 6 GHz – 7.2 dBi | 2.4G: 3.3 dBi 5G: 4.7 dBi 6G: 5.8 dBi | 4.8 dBi | 4.2 dBi |
| 2 | 5 GHz – 6.7 dBi | 5 GHz – 7.0 dBi | 6 GHz – 7.2 dBi | 2.4G: 3.3 dBi 5G: 4.7 dBi 6G: 5.8 dBi | 4.8 dBi | 4.2 dBi |
| 3 | 6 GHz – 6.5 dBi | 5 GHz – 7.0 dBi | 6 GHz – 7.2 dBi | 2.4G: 3.3 dBi 5G: 4.7 dBi 6G: 5.8 dBi | 4.8 dBi | 4.2 dBi |
Ordering Information
| SKU | Description |
|---|---|
| AP5022-WW | Indoor Quad Radio Wi-Fi 7 (4x4:4), internal omnidirectional antennas, T-Bar mount included. World SKU |
| AP5022S6D-WW | Indoor Quad Radio Wi-Fi 7 (4x4:4), internal 60° directional antennas, T-Bar mount included. World SKU |
| AP5022FX-WW | Indoor Quad Radio Wi-Fi 7 (4x4:4), external antennas, extended temp, T-Bar mount included. World SKU |
| AP5022-WW-TAA | AP5022-WW, TAA Compliant |
Note: 6 GHz operation is country dependent. AP5022FX-WW includes one ACC-CBL-BRKOUT-12RPSMA cable. For AP5022FX units outside the US and Canada, the internal 6 GHz radio is enabled to support Low Power Indoor (LPI) operation.
Power and Sensitivity:
| 2.4 GHz Radio | |||
|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11b | 1–11 Mbps | 18 | -93, -87 |
| 11g | 6 Mbps | 18 | -93 |
| 54 Mbps | 16 | -75 | |
| 11n HT20 | MCS0, 7 | 18, 16 | -93, -75 |
| 11n HT40 | MCS0, 7 | 18, 16 | -90, -72 |
| 11ax HE20 | HE0, 11 | 18, 14 | -93, -63 |
| 11ax HE40 | HE0, 11 | 18, 14 | -90, -60 |
| 11be EHT20 | EHT1, 13 | 18, 12 | -92, -58 |
| 11be EHT40 | EHT1, 13 | 18, 12 | -89, -55 |
| 2.4 GHz Radio – Sensor | |||
|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11b | 1–11 Mbps | 18 | -94, -88 |
| 11g | 6 Mbps | 18 | -94 |
| 54 Mbps | 16 | -76 | |
| 11n HT20 | MCS0, 7 | 18, 16 | -94, -76 |
| 11n HT40 | MCS0, 7 | 18, 16 | -91, -73 |
| 11ax HE20 | HE0, 11 | 18, 14 | -94, -65 |
| 11ax HE40 | HE0, 11 | 18, 14 | -91, -62 |
| 11be EHT20 | EHT1, 13 | 18, 12 | -94, -59 |
| 11be EHT40 | EHT1, 13 | 18, 12 | -91, -56 |
| 5 GHz Full Radio | |||
|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11a | 6 Mbps | 18 | -93 |
| 54 Mbps | 16 | -73 | |
| 11n HT20 | MCS0, 7 | 18, 16 | -93, -73 |
| 11n HT40 | MCS0, 7 | 18, 16 | -91, -71 |
| 11ac VHT20 | MCS0, 8 | 18, 15 | -92, -70 |
| 11ac VHT40 | MCS0, 9 | 18, 15 | -90, -65 |
| 11ac VHT80 | MCS0, 9 | 18, 15 | -88, -63 |
| 11ac VHT160 | MCS0, 9 | 17, 14 | -85, -61 |
| 11ax HE20 | HE0, 11 | 18, 14 | -92, -62 |
| 11ax HE40 | HE0, 11 | 18, 14 | -90, -60 |
| 11ax HE80 | HE0, 11 | 18, 14 | -87, -58 |
| 11ax HE160 | HE0, 11 | 17, 13 | -85, -55 |
| 11be EHT20 | EHT0, 13 | 18, 12 | -92, -55 |
| 11be EHT40 | EHT0, 13 | 18, 12 | -89, -53 |
| 11be EHT80 | EHT0, 13 | 18, 12 | -86, -50 |
| 11be EHT160 | EHT0, 13 | 17, 12 | -84, -47 |
| 5 GHz Radio – High | |||
|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11a | 6 Mbps | 17 | -92 |
| 54 Mbps | 15 | -73 | |
| 11n HT20 | MCS0, 7 | 17, 15 | -92, -73 |
| 11n HT40 | MCS0, 7 | 16, 15 | -90, -71 |
| 11ac VHT20 | MCS0, 8 | 17, 14 | -92, -70 |
| 11ac VHT40 | MCS0, 9 | 16, 14 | -90, -65 |
| 11ac VHT80 | MCS0, 9 | 16, 14 | -88, -63 |
| 11ac VHT160 | MCS0, 9 | 16, 14 | -85, -61 |
| 11ax HE20 | HE0, 11 | 17, 13 | -92, -62 |
| 11ax HE40 | HE0, 11 | 16, 13 | -89, -60 |
| 11ax HE80 | HE0, 11 | 16, 13 | -87, -58 |
| 11ax HE160 | HE0, 11 | 16, 13 | -85, -56 |
| 11be EHT20 | EHT0, 13 | 17, 12 | -91, -55 |
| 11be EHT40 | EHT0, 13 | 16, 12 | -88, -53 |
| 11be EHT80 | EHT0, 13 | 16, 12 | -85, -50 |
| 11be EHT160 | EHT0, 13 | 16, 12 | -82, -48 |
| 6 GHz Full Radio | |||
|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11a | 6 Mbps | 17 | -92 |
| 54 Mbps | 16 | -73 | |
| 11n HT20 | MCS0, 7 | 17, 16 | -92, -73 |
| 11n HT40 | MCS0, 7 | 17, 16 | -90, -71 |
| 11ac VHT20 | MCS0, 8 | 17, 15 | -92, -69 |
| 11ac VHT40 | MCS0, 9 | 17, 15 | -90, -65 |
| 11ac VHT80 | MCS0, 9 | 17, 15 | -87, -62 |
| 11ac VHT160 | MCS0, 9 | 15, 15 | -85, -59 |
| 11ax HE20 | HE0, 11 | 17, 14 | -92, -62 |
| 11ax HE40 | HE0, 11 | 17, 14 | -90, -59 |
| 11ax HE80 | HE0, 11 | 17, 14 | -87, -56 |
| 11ax HE160 | HE0, 11 | 15, 14 | -85, -53 |
| 11be EHT20 | EHT0, 13 | 17, 12 | -92, -56 |
| 11be EHT40 | EHT0, 13 | 17, 12 | -90, -54 |
| 11be EHT80 | EHT0, 13 | 17, 12 | -87, -51 |
| 11be EHT160 | EHT0, 13 | 15, 12 | -84, -48 |
| 11be EHT320 | EHT0, 13 | 15, 12 | -81, -45 |
| 6 GHz Radio – Sensor | |||
|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11a | 6 Mbps | 18 | -93 |
| 54 Mbps | 16 | -75 | |
| 11n HT20 | MCS0, 7 | 18, 16 | -93, -74 |
| 11n HT40 | MCS0, 7 | 18, 16 | -91, -72 |
| 11ac VHT20 | MCS0, 8 | 18, 15 | -93, -70 |
| 11ac VHT40 | MCS0, 9 | 18, 15 | -91, -66 |
| 11ac VHT80 | MCS0, 9 | 18, 15 | -88, -63 |
| 11ac VHT160 | MCS0, 9 | 17, 14 | -86, -60 |
| 11ax HE20 | HE0, 11 | 18, 14 | -93, -63 |
| 11ax HE40 | HE0, 11 | 18, 14 | -91, -60 |
| 11ax HE80 | HE0, 11 | 18, 14 | -88, -57 |
| 11ax HE160 | HE0, 11 | 17, 13 | -86, -55 |
| 11be EHT20 | EHT0, 13 | 18, 12 | -93, -58 |
| 11be EHT40 | EHT0, 13 | 18, 12 | -91, -55 |
| 11be EHT80 | EHT0, 13 | 18, 12 | -88, -52 |
| 11be EHT160 | EHT0, 13 | 17, 12 | -86, -50 |
| 11be EHT320 | EHT0, 13 | 17, 12 | -83, -48 |
Full power and sensitivity tables including 5 GHz Low Radio and 5 GHz Sensor are available in the product datasheet.
Documentation:
Download the Extreme Networks AP5022 Series Datasheet (.PDF)
