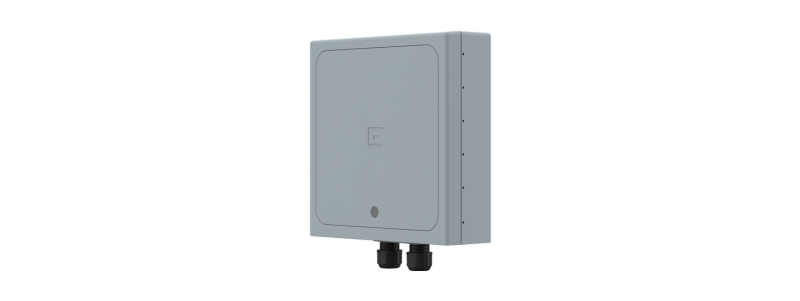

Extreme Networks AP5060 Series
Wi-Fi 7 Weatherized Access Point for Outdoor High-Density Environments
Weatherized Quad Radio Wi-Fi 7 (4x4:4): 2.4 GHz, 5 GHz, 6 GHz & dedicated full time sensor, Dual IoT, Dual 5 GHz, Dual 6 GHz, Multi-Rate Port, Internal omnidirectional antennas. Mounting sold separately. World SKU.
Our Price: Request a Quote
Weatherized Quad Radio Wi-Fi 7 (4x4:4): 2.4 GHz, 5 GHz, 6 GHz & dedicated full time sensor, Dual IoT, Dual 5 GHz, Dual 6 GHz, Multi-Rate Port, Directional Antennas: 20 or 70 degrees. Mounting sold separately. World SKU.
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Extreme's AP5060 Series brings Wi-Fi 7 performance to the toughest high-density outdoor environments, delivering the bandwidth, reliability, and environmental durability required by stadiums, arenas, transportation hubs, and large enterprise campus deployments. With a quad-radio design delivering 4x4:4 MIMO across 2.4 GHz, 5 GHz, and 6 GHz — plus a dedicated tri-band sensor — the AP5060 Series delivers exceptional performance with aggregate data rates up to 23 Gbps, and real-time RF visibility in the harshest deployment scenarios. Its IP67 weatherized enclosure and extended -40°C to +60°C operating range ensure reliable connectivity in the harshest environmental conditions.
Designed for high-density client populations and mission-critical operations, the AP5060 leverages multi-band filtering, cellular coexistence filtering (CCF), and Wi-Fi 7 capabilities including 320 MHz channels, MLO, OFDMA, and 4K QAM to maximize spectrum efficiency. It can deliver full Wi-Fi performance when powered via 802.3at (PoE+), simplifying switch support with limited power options.
The AP5060 Series includes two models:
- AP5060U — features omnidirectional internal antennas, delivering optimal coverage for high-density outdoor environments. Ideal for underseat, on-pole, or wall-mount deployments.
- AP5060D — incorporates configurable 20/70 degree directional internal antennas, delivering focused coverage for stadiums, transportation hubs, and outdoor venue environments with concentrated client populations.
Key Highlights
- Manageable by Extreme Platform ONE™*, ExtremeCloud™ IQ* and ExtremeCloud IQ Controller
- Quad-Radio Design: 2.4 GHz (4x4:4), 5 GHz (4x4:4), 6 GHz (4x4:4)**, dedicated Tri-band 2x2 Sensor
- Two IoT Radios with Bluetooth Low Energy (BLE), Zigbee, Thread capabilities
- IP67 Weatherized enclosure
- Extended temperature range: -40°C to +60°C (-40°F to 140°F)
- Operational modes: 2.4/5/6 GHz + Tri-band Sensor; Dual 5 GHz/6 GHz + Tri-band Sensor; 5 GHz/Dual 6 GHz + Tri-band Sensor
- Multi-band filter reduces interference and enables 5 GHz and 6 GHz operation across all available channels
- Cellular Coexistence Filter (CCF) minimizes interference from cellular networks
- Full functionality with 802.3bt; required functionality with 802.3at
- Built-in PoE failover or PSE (PoE Out)
* Support in future release ** 6 GHz is country-dependent
Wi-Fi 7 Enhanced Capacity
| Band | Number of 20 MHz Channels | Maximum Channel Size | Maximum Throughput |
|---|---|---|---|
| 6 GHz | 59 | 320 MHz | 11.5 Gbps |
| 5 GHz | 25 | 160 MHz | 5.7 Gbps |
| 2.4 GHz | 3 | 40 MHz | 1.3 Gbps |
| Total | 87 | – | 18.5 Gbps |
Dual 5 GHz or Dual 6 GHz mode total: up to 22.9 Gbps
Features:
Wi-Fi 7 (802.11be) Technology
Wi-Fi 7 (802.11be) introduces benefits across the 2.4 GHz, 5 GHz, and 6 GHz bands with reduced latency and jitter for time-sensitive networking applications. Wi-Fi 7 capabilities such as 320 MHz channels, 4K-QAM, and Multi-Link Operation (MLO) help enable superior speeds and high-density performance. The 6 GHz band enables improved quality of service (QoS) in dense environments, new applications and use cases, and an improved user experience.
Extreme Platform ONE*
Extreme Platform ONE is the Extreme Networks enterprise connectivity platform that integrates networking and security with AI into one powerful and radically simplified experience and licensing model. It supports NetOps, SecOps, and business teams with built-in automation and enables organizations to regain control, unlock innovation, and boost productivity through one integrated experience, AI-powered workflows, and simplified licensing.
Software-Defined Radios
The AP5060U and AP5060D feature two distinct software-defined radio (SDR) modes for different deployment scenarios. Featuring quad radios, it can transmit with multiple combinations of three data radios across the 2.4 GHz, 5 GHz, and 6 GHz bands in addition to an always-on dedicated tri-band sensor. The multiband filter reduces interference and enables 5 GHz and 6 GHz operation across all available channels without restriction.
Universal Hardware
The AP5060U and AP5060D are built with Extreme's Universal Hardware technology, allowing for multiple deployment use cases through a simple change of software or feature set. The Universal World SKU allows organizations to order one model for any region where Extreme Networks products are sold, replacing the age-old problem of country-specific models.
Security
The AP5060U and AP5060D deliver the highest level of security services, beginning with support for WPA3. They act as an enforcement point for Extreme Platform ONE Security, providing automated security policy enforcement. Extreme Fabric adds additional security by automating provisioning and deployment by connecting to a Fabric-enabled switch. Additionally, the AP supports a stateful L2-L7 DPI firewall for context-based access security, tri-band security, and a location analytics sensor.
Stadium-Ready
As the Official Wi-Fi Solutions Provider of the NFL and MLB, Extreme understands that no two stadium environments are alike. Whether it's field level, bowl seating, gate entrances, concierge areas, parking lots, or temporary sites, the AP5060U and AP5060D offer flexible deployment options — from underseat and pole mounts to software-selectable antennas — ensuring seamless coverage and an exceptional mobile experience throughout the venue.
Integrated Bluetooth Low Energy & IoT
The AP5060U and AP5060D integrate Bluetooth® Low Energy (BLE) to connect with IoT devices wirelessly to engage loyalty customers with Apple iBeacon. Enterprises can use API-driven applications to send advertisements directly to shoppers, guests, and conference attendees. Dual IoT radios support Thread, Zigbee, and BLE simultaneously.
* Support available in future release
Specifications:
Radio Specifications
Max Users
- SSID per Radio/Total: 8/24
- Users per Radio/Total: 512/1,536
802.11be (Wi-Fi 7)
- 2.4 GHz–2.5 GHz, 5.15–5.850 GHz, and 5.925–7.125 GHz operating frequencies
- 802.11be modulation (4096-QAM)
- 4x4:4 stream MIMO at 6 GHz, 5 GHz, and 2.4 GHz
- Rates: 6G up to 11,500 Mbps; 5G up to 5,700 Mbps; 2.4G up to 1,300 Mbps
- EHT20/EHT40/EHT80/EHT160/EHT320 for 6 GHz
- EHT20/EHT40/EHT80/EHT160 for 5 GHz
- EHT20/EHT40 for 2.4 GHz
- UL/DL SU-MIMO and MU-MIMO, TxBF
Legacy Standards: 802.11a/b/g/n/ac/ax also supported
IoT & GPS
- (2) IoT radios: Thread, Zigbee®, Bluetooth 5.4 Low Energy, IEEE 802.15.4
- GPS: L1 (1575.42 MHz) and L5 (1176.45 MHz) frequency support
Interfaces
- ETH0: 100/1,000/2,500/5,000/10,000 Mbps autosensing, PoE PD, MACsec (802.1AE)
- ETH1: 100/1,000/2,500/5,000/10,000 Mbps autosensing, PoE PD in or 15.4W PSE out mode (requires 802.3bt on ETH0), PoE Hitless failover
- 802.3az Energy-Efficient Ethernet (EEE)
Power Options
- 802.3at PoE: Typical 21W; Max 25.5W without PSE
- 802.3bt PoE: Typical 25W; Max 30W without PSE
Physical Specifications
| Model | Dimensions | Weight |
|---|---|---|
| AP5060D | 11.34" x 19.02" x 3.43" (288mm x 483mm x 87mm) |
10.27 lbs (4.66 kg) |
| AP5060U | 11.35" x 10.0" x 2.96" (288mm x 254mm x 75mm) |
7.69 lbs (3.49 kg) |
Security Hardware
- Trusted Platform Module (TPM)
Mounting Options
- 15 Degree tilt: KT-147407-02
- 12" Extension: KT-150173-01
- 80 Degree tilt + Extension: MBO-ART03
- Underseat (AP5060U only): EIO-04
Environmental
- IP67 Weatherized
- Operating: -40°C to +60°C (-40°F to 140°F) with solar load
- Storage: -40°C to 70°C
- Humidity: 0% to 95% (non-condensing)
- Wind resistance: up to 165 mph (241 km/h) sustained winds
Regulatory & Safety
- UL 60950-1 / UL/CuL 62368-1 Listed, UL 2043 Plenum rated
- EN 62368-1 / CB IEC 62368-1
- AS/NZS 60950-1 (Australia/New Zealand)
- FCC CFR 47 Part 15 Class B / ICES-003 Class B
- EN 55032 Class B / CISPR 32 Class B / AS/NZS CISPR32
- CE: 2014/53/EU Radio Equipment Directive
Environmental Compliance
- EU RoHS – 2011/65/EU and amendments
- EU WEEE – 2012/19/EU
- China RoHS-2 SJ/T 11364-2014
Wi-Fi Alliance Certifications
- Wi-Fi CERTIFIED™ 7 / Wi-Fi CERTIFIED™ 6 Release 2
- WPA™, WPA2™, WPA3™ — Enterprise and Personal
- Protected Management Frames, Wi-Fi Enhanced Open™
Ordering Information
| SKU | Description |
|---|---|
| AP5060U-WW | Weatherized, omnidirectional internal antennas, World SKU |
| AP5060D-WW | Weatherized, directional antennas 20/70°, World SKU |
| AP5060U-WW-TAA | AP5060U World SKU, TAA Compliant |
| AP5060D-WW-TAA | AP5060D World SKU, TAA Compliant |
Antenna Gain Matrix
AP5060U (Omnidirectional)
| Op. Mode | Radio 1 | Radio 2 | Radio 3 | Scan Radio | IoT Radio 1 | IoT Radio 2 |
|---|---|---|---|---|---|---|
| 1 | 2.4 GHz – 2.1 dBi | 5 GHz – 6.8 dBi | 6 GHz – 6.7 dBi | 2.4G: 2.9 dBi 5G: 7 dBi 6G: 6.9 dBi | 5.4 dBi | 4 dBi |
| 2 | 5 GHz – 5.4 dBi | 5 GHz – 6.8 dBi | 6 GHz – 6.7 dBi | 2.4G: 2.9 dBi 5G: 7 dBi 6G: 6.9 dBi | 5.4 dBi | 4 dBi |
| 3 | 6 GHz – 6 dBi | 5 GHz – 6.8 dBi | 6 GHz – 6.7 dBi | 2.4G: 2.9 dBi 5G: 7 dBi 6G: 6.9 dBi | 5.4 dBi | 4 dBi |
AP5060D (20 Degrees)
| Op. Mode | Radio 1 | Radio 2 | Radio 3 | Scan Radio | IoT Radio 1 | IoT Radio 2 |
|---|---|---|---|---|---|---|
| 1 | 2.4 GHz – 7.9 dBi | 5 GHz – 10.2 dBi | 6 GHz – 11.1 dBi | 2.4G: 8.2 dBi 5G: 8.1 dBi 6G: 8.8 dBi | 4.8 dBi | 5.3 dBi |
| 2 | 5 GHz – 10.8 dBi | 5 GHz – 10.2 dBi | 6 GHz – 11.1 dBi | 2.4G: 8.2 dBi 5G: 8.1 dBi 6G: 8.8 dBi | 4.8 dBi | 5.3 dBi |
| 3 | 6 GHz – 11 dBi | 5 GHz – 10.2 dBi | 6 GHz – 11.1 dBi | 2.4G: 8.2 dBi 5G: 8.1 dBi 6G: 8.8 dBi | 4.8 dBi | 5.3 dBi |
AP5060D (70 Degrees)
| Op. Mode | Radio 1 | Radio 2 | Radio 3 | Scan Radio | IoT Radio 1 | IoT Radio 2 |
|---|---|---|---|---|---|---|
| 1 | 2.4 GHz – 7.9 dBi | 5 GHz – 7.6 dBi | 6 GHz – 6.1 dBi | 2.4G: 8.2 dBi 5G: 8.1 dBi 6G: 8.8 dBi | 4.8 dBi | 5.3 dBi |
| 2 | 5 GHz – 7.7 dBi | 5 GHz – 7.6 dBi | 6 GHz – 6.1 dBi | 2.4G: 8.2 dBi 5G: 8.1 dBi 6G: 8.8 dBi | 4.8 dBi | 5.3 dBi |
| 3 | 6 GHz – 7.5 dBi | 5 GHz – 7.6 dBi | 6 GHz – 6.1 dBi | 2.4G: 8.2 dBi 5G: 8.1 dBi 6G: 8.8 dBi | 4.8 dBi | 5.3 dBi |
Power and Sensitivity:
| 2.4 GHz Radio | |||
|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11b | 1–11 Mbps | 18 | -93, -87 |
| 11g | 6 Mbps | 18 | -93 |
| 54 Mbps | 16 | -75 | |
| 11n HT20 | MCS0, 7 | 18, 16 | -93, -75 |
| 11n HT40 | MCS0, 7 | 18, 16 | -90, -72 |
| 11ax HE20 | HE0, 11 | 18, 14 | -93, -63 |
| 11ax HE40 | HE0, 11 | 18, 14 | -90, -60 |
| 11be EHT20 | EHT1, 13 | 18, 12 | -92, -58 |
| 11be EHT40 | EHT1, 13 | 18, 12 | -89, -55 |
| 2.4 GHz Radio – Sensor | |||
|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11b | 1–11 Mbps | 18 | -94, -88 |
| 11g | 6 Mbps | 18 | -94 |
| 54 Mbps | 16 | -76 | |
| 11n HT20 | MCS0, 7 | 18, 16 | -94, -76 |
| 11n HT40 | MCS0, 7 | 18, 16 | -91, -73 |
| 11ax HE20 | HE0, 11 | 18, 14 | -94, -65 |
| 11ax HE40 | HE0, 11 | 18, 14 | -91, -62 |
| 11be EHT20 | EHT1, 13 | 18, 12 | -94, -59 |
| 11be EHT40 | EHT1, 13 | 18, 12 | -91, -56 |
| 5 GHz Full Radio | |||
|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11a | 6 Mbps | 18 | -93 |
| 54 Mbps | 16 | -73 | |
| 11n HT20 | MCS0, 7 | 18, 16 | -93, -73 |
| 11n HT40 | MCS0, 7 | 18, 16 | -91, -71 |
| 11ac VHT20 | MCS0, 8 | 18, 15 | -92, -70 |
| 11ac VHT40 | MCS0, 9 | 18, 15 | -90, -65 |
| 11ac VHT80 | MCS0, 9 | 18, 15 | -88, -63 |
| 11ac VHT160 | MCS0, 9 | 17, 14 | -85, -61 |
| 11ax HE20 | HE0, 11 | 18, 14 | -92, -62 |
| 11ax HE40 | HE0, 11 | 18, 14 | -90, -60 |
| 11ax HE80 | HE0, 11 | 18, 14 | -87, -58 |
| 11ax HE160 | HE0, 11 | 17, 13 | -85, -55 |
| 11be EHT20 | EHT0, 13 | 18, 12 | -92, -55 |
| 11be EHT40 | EHT0, 13 | 18, 12 | -89, -53 |
| 11be EHT80 | EHT0, 13 | 18, 12 | -86, -50 |
| 11be EHT160 | EHT0, 13 | 17, 12 | -84, -47 |
| 5 GHz Radio – High | |||
|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11a | 6 Mbps | 17 | -92 |
| 54 Mbps | 15 | -73 | |
| 11n HT20 | MCS0, 7 | 17, 15 | -92, -73 |
| 11n HT40 | MCS0, 7 | 16, 15 | -90, -71 |
| 11ac VHT20 | MCS0, 8 | 17, 14 | -92, -70 |
| 11ac VHT40 | MCS0, 9 | 16, 14 | -90, -65 |
| 11ac VHT80 | MCS0, 9 | 16, 14 | -88, -63 |
| 11ac VHT160 | MCS0, 9 | 16, 14 | -85, -61 |
| 11ax HE20 | HE0, 11 | 17, 13 | -92, -62 |
| 11ax HE40 | HE0, 11 | 16, 13 | -89, -60 |
| 11ax HE80 | HE0, 11 | 16, 13 | -87, -58 |
| 11ax HE160 | HE0, 11 | 16, 13 | -85, -56 |
| 11be EHT20 | EHT0, 13 | 17, 12 | -91, -55 |
| 11be EHT40 | EHT0, 13 | 16, 12 | -88, -53 |
| 11be EHT80 | EHT0, 13 | 16, 12 | -85, -50 |
| 11be EHT160 | EHT0, 13 | 16, 12 | -82, -48 |
| 6 GHz Full Radio | |||
|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11a | 6 Mbps | 17 | -92 |
| 54 Mbps | 16 | -73 | |
| 11n HT20 | MCS0, 7 | 17, 16 | -92, -73 |
| 11n HT40 | MCS0, 7 | 17, 16 | -90, -71 |
| 11ac VHT20 | MCS0, 8 | 17, 15 | -92, -69 |
| 11ac VHT40 | MCS0, 9 | 17, 15 | -90, -65 |
| 11ac VHT80 | MCS0, 9 | 17, 15 | -87, -62 |
| 11ac VHT160 | MCS0, 9 | 15, 15 | -85, -59 |
| 11ax HE20 | HE0, 11 | 17, 14 | -92, -62 |
| 11ax HE40 | HE0, 11 | 17, 14 | -90, -59 |
| 11ax HE80 | HE0, 11 | 17, 14 | -87, -56 |
| 11ax HE160 | HE0, 11 | 15, 14 | -85, -53 |
| 11be EHT20 | EHT0, 13 | 17, 12 | -92, -56 |
| 11be EHT40 | EHT0, 13 | 17, 12 | -90, -54 |
| 11be EHT80 | EHT0, 13 | 17, 12 | -87, -51 |
| 11be EHT160 | EHT0, 13 | 15, 12 | -84, -48 |
| 11be EHT320 | EHT0, 13 | 15, 12 | -81, -45 |
| 6 GHz Radio – Sensor | |||
|---|---|---|---|
| Channel | Data Rate | Power (dBm) | Sensitivity (dBm) |
| 11a | 6 Mbps | 18 | -93 |
| 54 Mbps | 16 | -75 | |
| 11n HT20 | MCS0, 7 | 18, 16 | -93, -74 |
| 11n HT40 | MCS0, 7 | 18, 16 | -91, -72 |
| 11ac VHT20 | MCS0, 8 | 18, 15 | -93, -70 |
| 11ac VHT40 | MCS0, 9 | 18, 15 | -91, -66 |
| 11ac VHT80 | MCS0, 9 | 18, 15 | -88, -63 |
| 11ac VHT160 | MCS0, 9 | 17, 14 | -86, -60 |
| 11ax HE20 | HE0, 11 | 18, 14 | -93, -63 |
| 11ax HE40 | HE0, 11 | 18, 14 | -91, -60 |
| 11ax HE80 | HE0, 11 | 18, 14 | -88, -57 |
| 11ax HE160 | HE0, 11 | 17, 13 | -86, -55 |
| 11be EHT20 | EHT0, 13 | 18, 12 | -93, -58 |
| 11be EHT40 | EHT0, 13 | 18, 12 | -91, -55 |
| 11be EHT80 | EHT0, 13 | 18, 12 | -88, -52 |
| 11be EHT160 | EHT0, 13 | 17, 12 | -86, -50 |
| 11be EHT320 | EHT0, 13 | 17, 12 | -83, -48 |
Full power and sensitivity tables for 5 GHz Radio-Low and additional sub-bands are available in the product datasheet.
Documentation:
Download the Extreme Networks AP5060 Series Datasheet (.PDF)
